FTP Agents automatically transfer files attached to process instances that contain the FTP Agents. Like all Agents, FTP Agents take the place of Systemwalker Runbook Automation activities. Process instances started from a process definition containing an FTP Agent automatically transfer the files that are attached to them. They transfer the attached file(s) to the FTP Server of any machine to which the Management Server machine can connect.
To define a new FTP Agent:
Right-click your project in the Navigator view and select New >> FTP Agent.

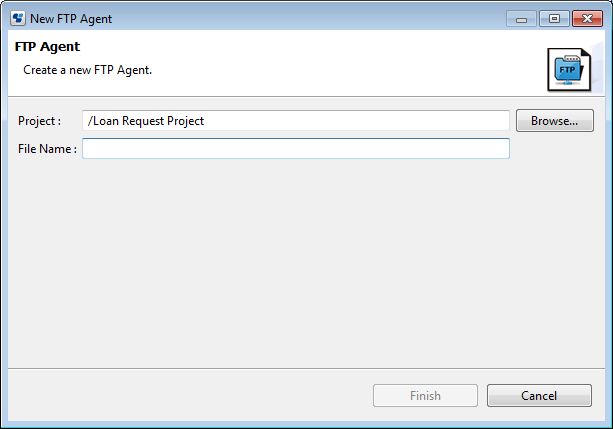

The New FTP Agent dialog is displayed. The following figure displays the New FTP Agent dialog.
Figure 11.45 Defining FTP Agent
Enter the name of the project for which you want to define a new FTP Agent in Project field.
Optional: Click Browse to select the project.
Folder Selection dialog is displayed. Select the project from this dialog and click OK.
After selecting the project, enter a name for the new FTP Agent in File Name field.
Note
You must add .xml after the name of the file that you enter in the File Name field.
Click OK on the New FTP Agent dialog.
The new FTP Agent file (FTPAgent.xml) is added to the Resources folder and also displayed in the editor. Refer to "C.2 FTP Agent File (ftp.xml)" for more information on FTP Agent file.
