11.1.3 Editing Java Actions

You can edit Java Actions that you have assigned to the process definition or to individual nodes.

To edit a Java Action:

  1. Click the empty space in the Process Definition editor or select the node that has the Java Action assigned, to display the Properties view for the process definition or the node respectively.

  2. Select the Action Set tab.

    The Properties view shows all Java Actions that have been assigned to the Action Set. The following example shows a number of Java Actions assigned to the Owner Action Set.

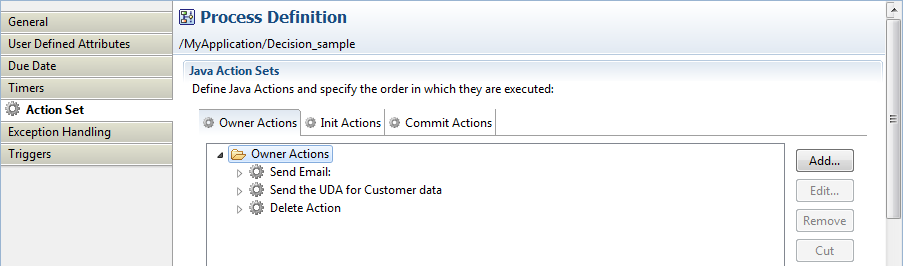

    Figure 11.4 Displaying the Owner Action Set

  3. Select the Java Action that you want to change. Click Edit next to it.

    A dialog is displayed where you can make your changes. In the dialog box displayed, make changes required depending on the action you selected.

  4. Click OK to close the dialogs.
