Prerequisites:
You have created a subprocess definition.
In the parent process definition, you have added a Subprocess Node.
You have connected the Subprocess Node to the subprocess definition.
You can navigate to the subprocess definition from the parent process definition.
To navigate to a subprocess definition:
In the parent process definition, select the Subprocess Node.
Right click and select Go to Subprocess from the pop-up menu.
A new Process Definition editor is opened displaying the subprocess definition.
If you do not want to edit the subprocess definition, but simply want to view it, you can display it in a separate window: In the parent process definition, click the plus sign (+) of the Subprocess Node. The subprocess definition will be opened in a separate window, for example:

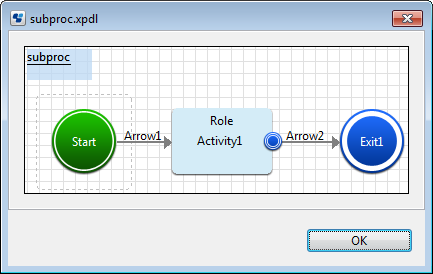

Figure 9.1 Subprocess Definition
