6.1.4 Specify the Values for Variables (UDA)

Variable (UDA) values can be specified for the input information of operation components.

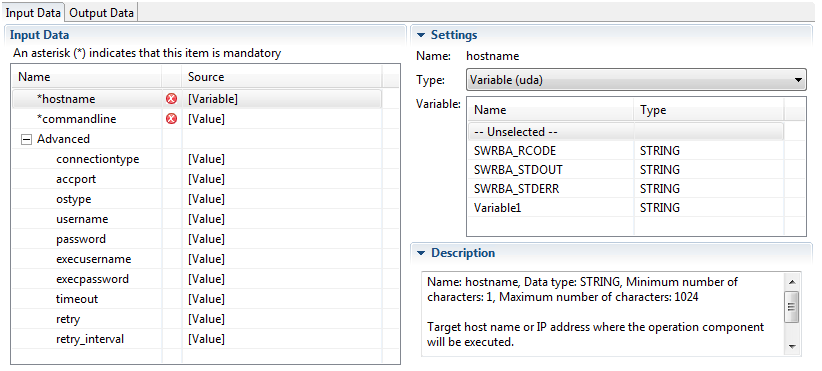

  1. Select Variable (uda) from the Type combo box.

    A list of variables (UDA) that can be selected is displayed in the Variable list.

    Click the Name column to sort the list by the name of the variable (UDA). Click the Type column to sort by type. The default is ascending.

    The type of variable (UDA) displayed in the Variable list depends on the type of input information (STRING/INTEGER/PASSWORD).

    Types of Input Information

    Types of variables (UDA) displayed in the Variable list

    STRING

    STRING, INTEGER, BOOLEAN, DATE, XML

    INTEGER

    STRING, INTEGER

    PASSWORD

    STRING

    Point

    Data conversion rules

    Variable values are converted as follows and passed to the input information:

    Types
    of Input Information

    Types of
    Variable

    Variable value (example)

    Content passed to input information (examples)

    Remarks

    STRING

    STRING

    "aaaa"

    "aaaa"

    No conversion

    INTEGER

    100

    "100"

    Integer strings

    BOOLEAN

    true

    "true"

    Boolean strings

    DATE

    2011/08/31 10:49:12

    "1314755352734"

    Date/Time (in milliseconds) strings

    XML

    <root>...</root>

    "<root>...</root>"

    XML data strings

    INTEGER

    STRING

    "100"

    100

    Converts the strings to integers.

    An error occurs if characters other than numbers are included.

    INTEGER

    100

    100

    No conversion

    PASSWORD

    STRING

    "password"

    "password"

    No conversion

Select the variable from the Variable list.
