Function overview
The following functions are provided to allow linkage to ServerView Resource Orchestrator Cloud Edition:
Management of performance information on infrastructure and business according to roll of user of ServerView Resource Orchestrator
By linking to the ServerView Resource Orchestrator Cloud Edition V3.1.0 and later, Systemwalker Service Quality Coordinator can do the performance analysis and capacity management of the virtualized/cloud environment seamlessly.
Performance information on L-Server that composes the tenant and L-Platform of ServeView Resource Orchestrator Cloud Edition can be managed according to the roll of the user of ServerView Resource Orchestrator Cloud Edition.

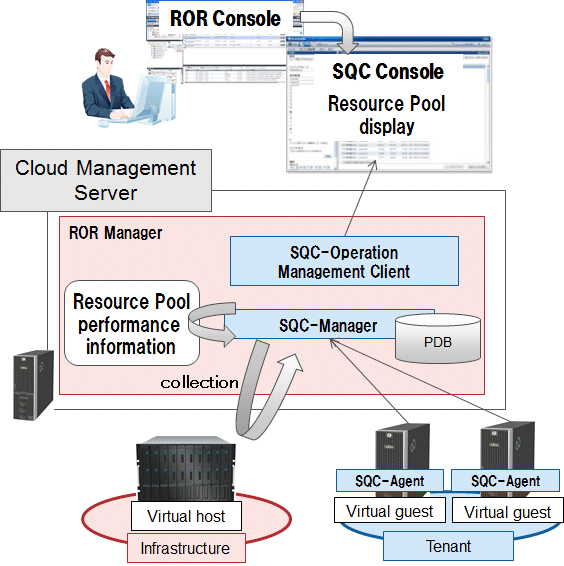

Using the console to check the resource pool space to be managed by ServerView Resource Orchestrator
Situation awareness and the demand forecast of resource pool can be done by analyzing performance information of resource pool managed by ServerView Resource Orchestrator with Systemwalker Service Quality Coordinator.
Figure above is an operation image for the Windows version. For Linux versions, prepare the operation management client separately.

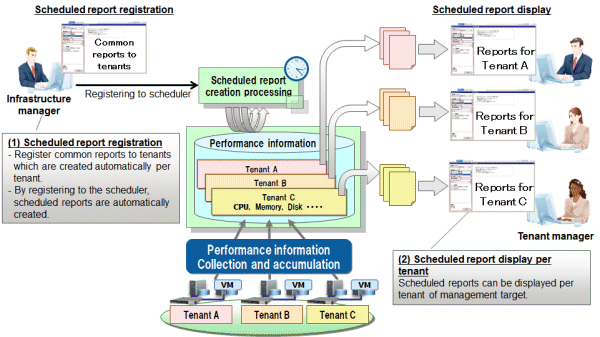

Registering, creating, and displaying scheduled reports common to tenants and also by each tenant
By the infrastructure manager's registering a common report to the tenant, it is possible to output usage situations per tenant and diagnosis reports automatically on a regular schedule.
Linking Model to ServerView Resource Orchestrator Cloud Edition
The two types of models for linking to ServerView Resource Orchestrator are installing 'together with' and installing 'separately from' ServerView Resource Orchestrator.
Select installing 'together with' or 'separately from' ServerView Resource Orchestrator according to the number of managed object.

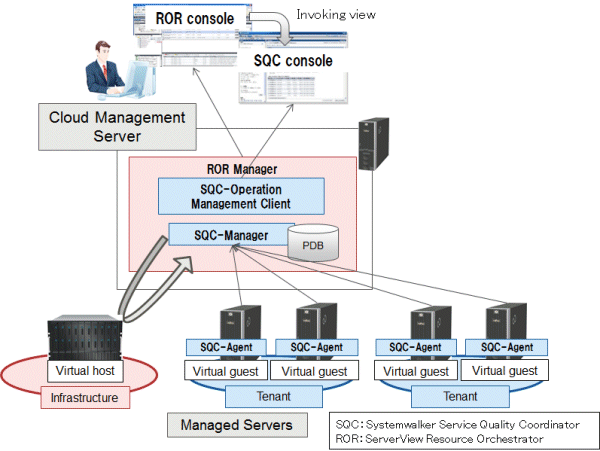

This is a model to use a Manager of the ServerView Resource Orchestrator as a Manager of Systemwalker Service Quality Coordinator.
Performance information of the managed server is collected by the Systemwalker Service Quality Coordinator Agent and is stored in the ServerView Resource Orchestrator Manager.
Resource space and performance information are checked using the console of the Systemwalker Service Quality Coordinator invoked from ServerView Resource Orchestrator.
Up to 300 managed object if the physical disks of the Manager are categorized into summary data, resource data, and archive files. When the managed object becomes more than 300, compose as installing 'separately from' ServerView Resource Orchestrator.

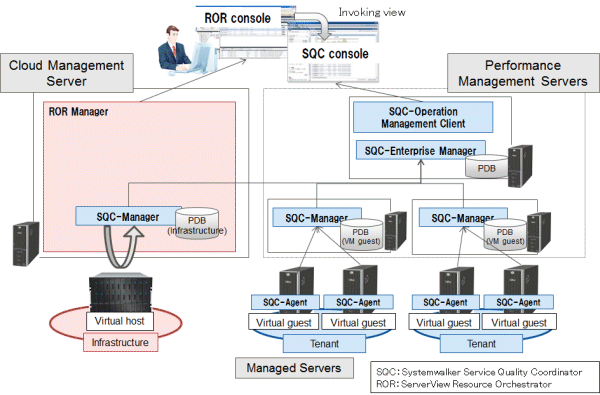

This is a model of Systemwalker Service Quality Coordinator Manager and Enterprise Manager as a performance management server prepared besides ServerView Resource Orchestrator.
Infrastructure performance information is stored in the ServerView Resource Orchestrator Manager, and performance information for virtual machines that have been deployed to tenants is stored in the performance management server. A console connected to the performance management server can be used for centralized management so that performance information of the ServerView Resource Orchestrator Manager can be referenced from the performance management server.
Procedure
The linkage procedure is explained in the following sections:
