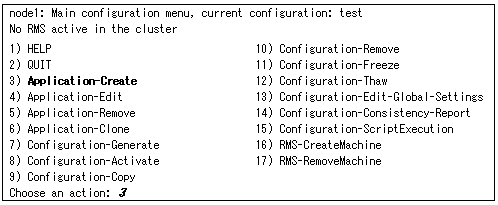

Create userApplication by selecting Application-Create in the “Main RMS manage menu” page.

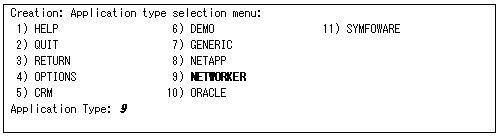

Select NETWORKER (in capitals) in the “Application type selection menu” page.
Specify a userApplication name of ApplicationName in the “Settings of turnkey wizard NETWORKER” page.

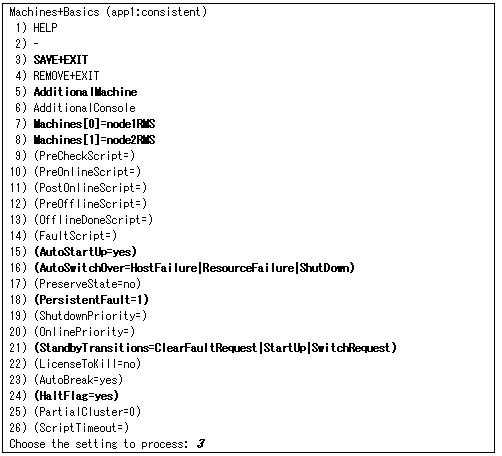

Select Machines+Basics to set up nodes and following menu items.
Set an operating node to Machines [0], and standby nodes to Machines [n]. Select AdditionalMachines when adding a new node. For other settings, see HELP or the PRIMECLUSTER Installation and Administration Guide.
Information
The following setup values are recommended. The other attributes not described below are optional.
Attributes | Values |
|---|---|
AutoStartUp | Yes |
AutoSwitchOver | HostFailure|ResourceFailure|ShutDown |
PersistentFault | 1 |
StandbyTransitions | ClearFaultRequest|StartUp|SwitchRequest |
HaltFlag | Yes |
Note
“StandbyTransitions“ must be changed as above stated while NetWorker clients clustering system is standby.
Save the above settings by selecting SAVE+EXIT.
Set up resources required for shared disks (GDS), LocalFileSystems, and Gls in the “Settings of turnkey wizard NETWORKER” page.
Return to the Main RMS management menu by selecting SAVE+EXIT. (Any settings related to NetWorker should not be done at this point.)
