Register NetWorker resources in userApplication that is created at “2.3 userApplication Creation”.

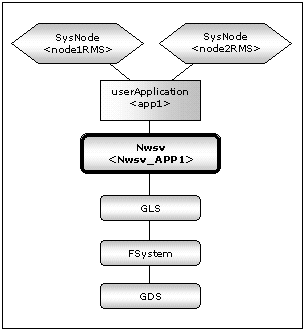

Server cluster operation

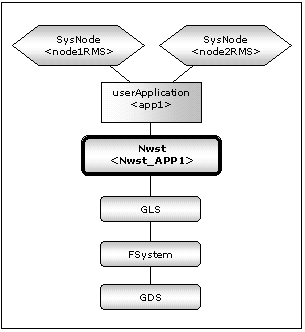

Storage node cluster operation
Note
NetWorker 7.4/7.5/7.6 does not support the high available storage node in any cluster systems. Therefore, the storage node cluster operation is not supported for NetWorker 7.4/7.5/7.6.
Client cluster operation(Standby operation)

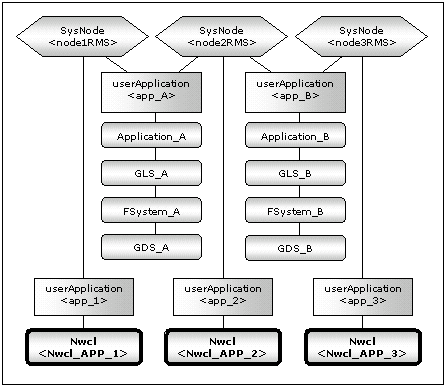

Client cluster operation(Scalable operation)
When you combine N:1 standby or mutual standby with the scalable operation of NetWorker client shown by "1.2.2.3 Client cluster operation ", create NetWorker resources and the userApplications which include them.
Information
At scalable operation, the following setup values are recommended for the userApplications which include NetWorker resources. The other attributes not described below are optional.
Attributes | Values |
|---|---|
AutoSwitchOver | No |
PersistentFault | 1 |
StandbyTransitions | No |
HaltFlag | No |
Note
Before starting this procedure, RMS on all the cluster nodes should stop.
Information
This section explains how to create userApplication and NetWorker resource, referring to “8.1.1 Changing the Cluster Application Configuration” of the “PRIMECLUSTER Installation and Administration Guide”.
