The following example shows the system configuration of the Server cluster operation, the Storage node cluster operation, and the Client cluster operation.

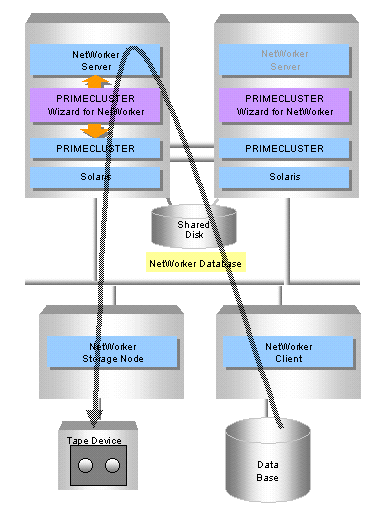

The following example shows the system configuration of the Server cluster operation.

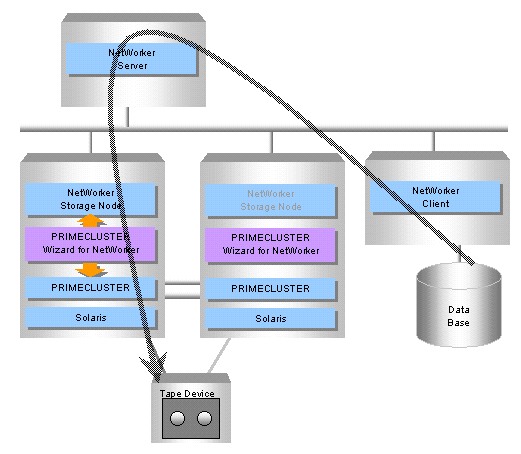

The following example shows the system configuration of the Storage node cluster operation.
Note
NetWorker 7.4/7.5/7.6 does not support the high available storage node in any cluster systems. Therefore, the storage node cluster operation is not supported for NetWorker 7.4/7.5/7.6.

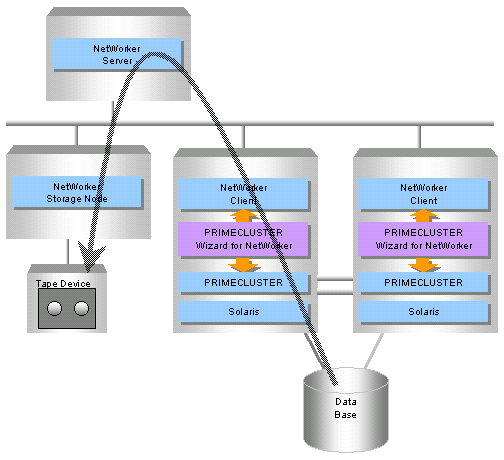

The following example shows the system configuration of the standby operation of the Client cluster operation.
Standby operation(1:1 standby)

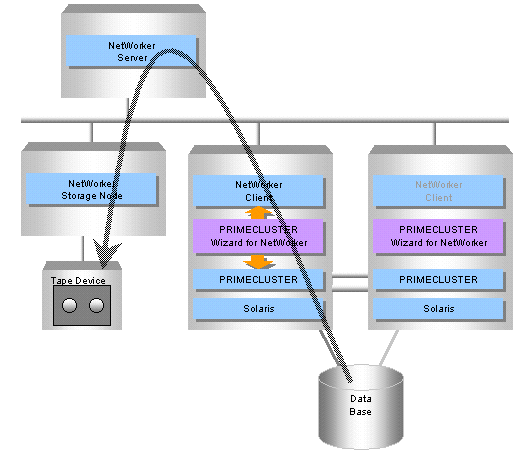

The following example shows the system configuration of the scalable operation of the Client cluster operation.
Scalable operation
Data on the shared disk can be backed up on the node that the virtual client (logical node) is activated.
When you combine N:1 standby or mutual standby with the client cluster operation of NetWorker, configure the cluster applications which include no NetWorker resource of N:1 standby or mutual standby, and configure the cluster applications which include NetWorker resources of scalable operation besides them.

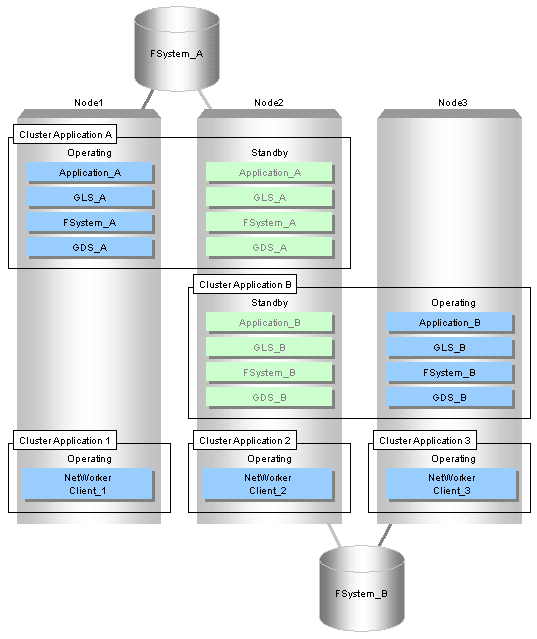

The following example shows the cluster applications of combining N:1 standby with the scalable operation of the NetWorker client.
Data of every node is able to be backed up whichever node the cluster applications except NetWorker are operated on because the NetWorker client is running on every node.
