3.5.3 Display the Tracking Status of Any Current QuickOPC

Perform the following procedure to display the progress of any QuickOPC tracking.

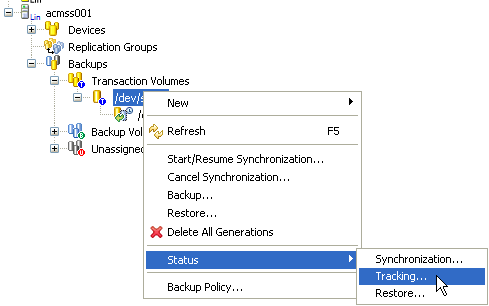

Select the desired transaction volume from the Site view and right-click it to invoke the backup context menu.

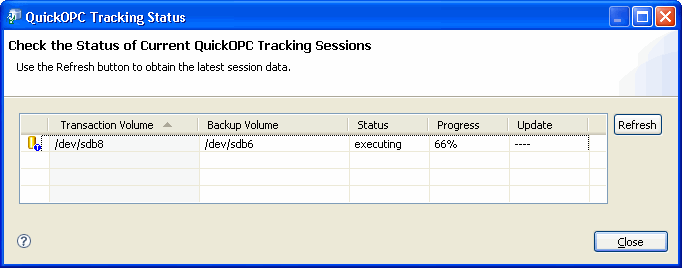

Select the [Status] item from the context menu to display the [Status] submenu and then select [Tracking] to invoke the [QuickOPC Tracking Status] dialog box.

Click [Refresh] to obtain the latest tracking status information for all backup volumes listed in the dialog box.

Label	Description
Transaction Volume	Displays a transaction volume name.
Backup Volume	Displays a backup volume name "----" is displayed when there is no tracking status.
Status	Displays the execution status. "----" : There is no tracking status. "executing" : Physical copy is in progress, and there is a tracking status. "tracking" : There is a tracking status. "failed" : Physical copy or tracking processing has terminated abnormally. "nosession" : The session does not exist (the resource information does not match).
Progress	When "executing" is displayed in the Status column, it indicates that amount that has been copied, as a percentage (%). "----" is displayed when "tracking" is displayed in the Status column.
Update	Shows the percentage (%) of updated data after logical copying, when "tracking" is displayed in the Status column. "----" is displayed when "executing" is displayed in the Status column.
