This section provides information on the maintenance of a backup management list. A backup management list is maintained on the server that performs the backup.
A backup management list is backed up.
For details of this, refer to swstresback (Resource backup command).
Backup management list backup data size
Check the size of the file that the subdirectory of the following directory contains.
<environment-settings-directory>\etc\backup\data |
In the cluster environment, check the size of the file that the subdirectory of the following directory contains
<shared disk>:\etc\opt\swstorage\etc\backup\data |
A backup management list is restored.
For details of this, refer to swstresrst (Resource restore command).
To perform the backup by using synchronous high-speed backup, it is necessary to save device information used by the backup management.
When the device configuration is changed, save device information as follows:
Confirm that backup synchronous processing has not begun. Use "GUI client" or "swstsyncstat (Backup synchronous processing progress display command)" to confirm the state of the backup synchronous processing.
Confirm that replication synchronous processing has not begun when the replication management is performed. Use "swsrpstat (Operation status display command)" to confirm the state of the replication synchronous processing.
To acquire device information, follow the instructions in "4.4.5 Fetching device information on a Storage Server".
Save the device information used by the backup management. Execute the following command to save the device information.
C:\>program-directory\bin\swstcmdmbak.exe |
When the AdvancedCopy Manager server is operating in a cluster environment, save device information as follows:
Perform this operation without setting environment variable SWSTGNODE.
Confirm that the backup synchronous processing has not begun. Use "GUI client" or "swstsyncstat (Backup synchronous processing progress display command)" to confirm the state of the backup synchronous processing.
Confirm that the replication synchronous processing has not begun when the replication management is performed. Use "swsrpstat (Operation status display command)" to confirm the state of the replication synchronous processing.
Save the device information used by the backup management by e executing the following command.
C:\>program-directory\bin\clset_Repdevice.exe Logical-Node-Name |
If the system was rebooted or the AdvancedCopy Manager service was restarted during synchronous processing, device information used with the backup management might have become incorrect.
In this case, recover the device information as follows:
When the AdvancedCopy Manager server is working in a cluster environment, perform the following after the environment variable SWSTGNODE is set:
Recover the device information used by backup management by executing the following command:
C:\>program-directory\bin\swstcmdmrst.exe |
Confirm the backup synchronous processing status. Use "GUI client" or "swstsyncstat (Backup synchronous processing progress display command)" to confirm the state of the backup synchronous processing.
Confirm the replication synchronous processing status when replication management is performed. Use "swsrpstat (Operation status display command)" to confirm the state of the replication synchronous processing.
This section describes the maintenance of a replication management list.
To back up a replication management list, back up the repository of the Storage Management Server. For information about backing up a repository, refer to "Saving a database" relevant to the OS of the Storage Management Server.
Point
Operational information for replication management is saved in a repository.
It is recommended that a replication management list be backed up when operation information for replication management is changed with swsrpsetvol (Replication volume information configuration command), or with swsrpdelvol (Replication volume information deletion command).
Perform the following steps to restore a replication management list:
Restore the repository to the Storage Management Server. For information about restoring a repository, refer to "Recovering a database" in the "ETERNUS SF AdvancedCopy Manager Operator's Guide" relevant to the OS of the Storage Management Server.
If the Storage Management Server is Windows
Select "RDB dictionary and DSI recovery (LOAD Mode)" as the recovery method.
If the Storage Management Server is Solaris or Linux
Specify 0 for stgdbrcv -m option (recovery mode) as the recovery method.
On the Storage Server, execute swsrprecoverres (Resource adjustment command) with the -r option specified. For details of the resource adjustment command, refer to "swsrprecoverres (Resource adjustment command)".
Point
When step 1 above is performed, operational information for replication management of a repository is copied to a Storage Server, where it is then available for use.
When this information for replication management in the repository does not need to be changed, and only the operation information for replication management on the Storage Server is incorrect (for some reason), perform only step 2.
To perform the replication by using synchronous replication, it is necessary to save device information used by the replication management.
When the device configuration is changed, save device information as follows:
Confirm that replication synchronous processing has not begun. Use swsrpstat (Operation status display command) to confirm the state of the replication synchronous processing.
Confirm that backup synchronous processing has not begun when the backup management is performed. Use the "GUI client" or swstsyncstat (Backup synchronous processing progress display command) to confirm the state of the backup synchronous processing.
To retrieve device information, perform "7.4.4 Fetching device information from a Storage Server".
Save the device information used by the replication management. Execute the following command to perform this.
C:\>program-directory\bin\swsrpcmdmbak.exe |
When the AdvancedCopy Manager server is working in a cluster environment, save device information as follows:
Perform this operation without setting the environment variable SWSTGNODE.
Confirm that replication synchronous processing has not begun. Use swsrpstat (Operation status display command) to confirm the state of the replication synchronous processing.
Confirm that backup synchronous processing has not begun when the backup management is performed. Use the "GUI client" or swstsyncstat (Backup synchronous processing progress display command) to confirm the state of the backup synchronous processing.
Save the device information used by the replication management. Execute the following command to save the device information.
C:\>program-directory\bin\clset_Repdevice.exe Logical-Node-Name |
If the system was rebooted or the AdvancedCopy Manager service was restarted while synchronous processing, device information used with the replication management might become incorrect.
In this case, recover device information as follows:
When the AdvancedCopy Manager server is working in a cluster environment, perform this operation after the environment variable SWSTGNODE is set.
Recover the device information used by replication management. Execute the following command to recover the device information.
C:\>program-directory\bin\swsrpcmdmrst.exe |
Confirm the replication synchronous processing status. Use swsrpstat (Operation status display command) to confirm the state of the replication synchronous processing.
Confirm the backup synchronous processing status when the backup management is performed. Use the "GUI client" or swstsyncstat (Backup synchronous processing progress display command) to confirm the state of the backup synchronous processing.
This section describes the maintenance of a database used by a Storage Management Server.
Saving a database can be performed either through functionality provided Using a GUI or Using the database save command.
An explanation of each method is provided below
Note
Executing this process with the service listed below must be paid attention.
Terminal service (via a remote desktop connection)
If the Storage Management Server is running on Windows Server 2003, the Terminal Service must be used by making a console session connection to it. Refer to the following link for information on how to make console session connections:
http://support.microsoft.com/kb/947723
http://support.microsoft.com/kb/278845
Do not use service listed below, as it will not work properly.
Telnet server service
When the Storage Management Server is in cluster operation, you should prepare directories into which data is saved on shared disks.
Using a GUI
Save a database as follows:
Click the [Start] button and select [Programs->]/[ AdvancedCopy Manager->]/[DB Setup].
The following window will be displayed. Click the [DB maintenance] button.

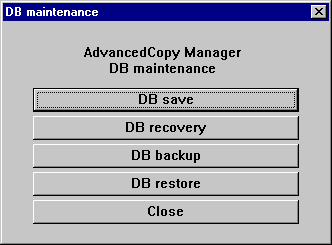

The following DB maintenance window will be displayed. Click the [DB save] button.

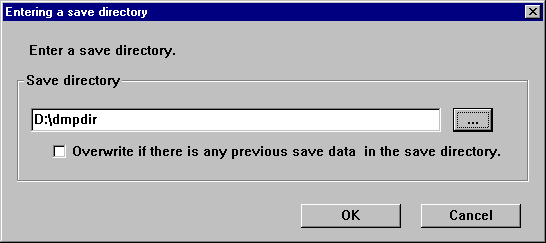

The save directory specification window will be displayed. To specify a save directory, enter the directory name and click the [OK] button. To overwrite an already saved directory, click in the [Overwrite if there is any previous save data in the save directory] checkbox.
Note
Create the save directory in advance.

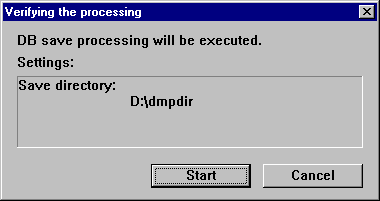

The DB save processing confirmation window will be displayed. Check that the information entered is correct and click the [Start] button.
When the DB save has completed successfully, the following window will be displayed. Click the [Close] button.
Using the database save command
Execute this command on the Storage Management Server.
For details on this command, refer to "11.3.18 stgdbdmp (Database save command)".
Point
Use this save method only when the configuration information is changed due to the addition of a Storage Server, or fetching of new device information. It is recommended to save a database regularly (for example, once a day).
To safeguard against an input-output error in an external file while saved data is being acquired, it is recommended to keep at least two generations of saved data.
Note
If no data is saved by this command or by using screens, the database cannot be recovered with the 10.1.1.3.3 Recovering a database process when an input-output error has occurred in the database.
Database backup data size
Calculate the size using the following formula:
60 + (number of devices to be managed x 0.001) megabytes |
You will need to recover a database if an input-output error occurs while using the database. The method of recovering the database depends on where in the database the error occurred.
To determine where an error has occurred in a database, follow the steps below:
Click the Start button and select [Programs]->[Administrator Tool (Common)]->[Event Viewer].
Display the event viewer window and select [Log]->[Application].
The application log window will be displayed. From the records whose source name is displayed as "SymfoWARE", double-click the record that encountered the error. This will display the detailed window.
On the detailed window, find a qdgXXXXX error message. Table 11.1 shows the "recovery modes" corresponding to error messages. A "recovery mode" indicates where to find information that is required to recover a database. For more information, refer to "10.1.1.3.3 Recovering a database".
Note
If multiple errors occur at the same time, recovery may not be possible using one of the recovery modes shown above. In this case, recreate a database and then use the recovery mode "Database recovery (LOAD mode)". This will perform a recovery up to the point when data has been saved.
Data written after the last database save will be adversely affected by the error and cannot be restored.
swstsrsemtch (Resource adjustment command) with option -x will need to be executed on all Storage Servers on which the backup is performed, after which swsrprecoverres (Resource adjustment command) with option -r will need to be executed on the Storage Servers on which the replication is performed.
If an input-output error (or any other error) occurs in the database space, perform recovery as follows:
Note
Executing this process with the service listed below must be paid attention.
Terminal service (via a remote desktop connection)
If the Storage Management Server is running on Windows Server 2003, the Terminal Service must be used by making a console session connection to it. Refer to the following link for information on how to make console session connections:
http://support.microsoft.com/kb/947723
http://support.microsoft.com/kb/278845
Do not use service listed below, as it will not work properly.
Telnet server service
When the Storage Management Server is in cluster operation, note the following points:
Before you execute this process, make the shared disk for the repository and that for shared data usable.
Upon the successful completion of recovery, resource "SymfoWARE RDB RDBSWSTF" on the Storage Management Server transaction may remain faulty on the cluster administrator. In this case, set the Storage Management Server transaction online from the cluster administrator.
Click the Start button and select [Programs]->[ AdvancedCopy Manager]->[DB Setup].
The following window will be displayed. Click the [DB maintenance] button.

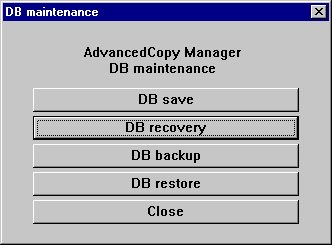

The following DB maintenance window will be displayed. Click the [DB recovery] button.

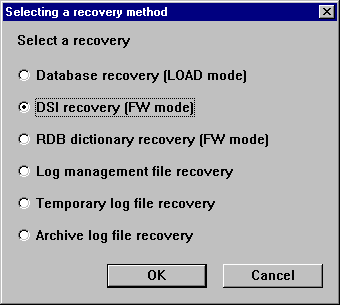

The recover mode selection window will be displayed. Select a recovery mode and click the [OK] button. For information on deciding on a recovery method, refer to 10.1.1.3.2 Finding an error in a database.

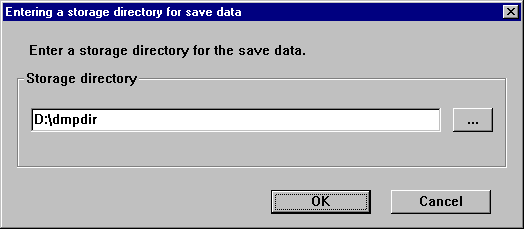

The window for entering a save data storage directory will be displayed. Specify a directory in which save data has been stored and click the [OK] button.

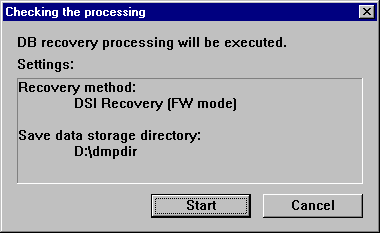

The processing confirmation window will be displayed. Check that the entered information is correct and click the [Start] button.

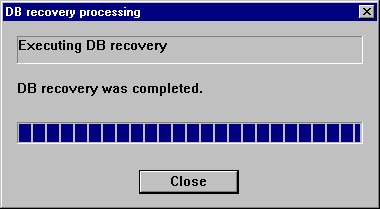

When the DB recovery process is completed, the following completion window will be displayed. Click the [Close] button.
When the DB recovery process is completed, save the database. It is recommended to save the database in a different location than previously. For information on the save methods, refer to 10.1.1.3.1 Saving a database.
Restart all the services on the Storage Management Server. For information on stopping and starting a service, refer to Chapter 2 Starting and Stopping a Service.
This section describes the maintenance of the authentication feature. Execute the command on the server (ie, on the Storage Server) where the authentication feature is implemented.
In a Storage Management Server, a program directory \bin\smmkbat command is executed and authentication management information is extracted. It is necessary to perform this command by logging in as the Administrator.
Change to the program directory \bin.
Execute the smmkbat command.
smmkbat -f <Definition information output batch file> Example: smmkbat-f acldata.bat |
A definition information output batch file is extracted as a batch file which describes the command sequence reflecting definition information.
Authentication management list backup data size
Calculate the size with the following formula:
400 + the number of accounts with an access permission * 60 bytes |
Execute the definition information output script.
To carry this out, it is necessary to log on as the Administrator.
Change to the program directory \bin.
Execute the definition information output batch macro.
This section describes the maintenance of a registry. Perform this procedure on a Storage Management Server or a Storage Server.
In a command prompt window, back up the following files using the copy command, etc.
environment-settings-directory\etc\swnode.ini environment-settings-directory\etc\device.ini
The drive letter of the shared disk for AdvancedCopy Manager share data:\etc\opt\swstorage\etc\swnode.ini The drive letter of the shared disk for AdvancedCopy Manager share data:\etc\opt\swstorage\etc\device.ini
Back up the registry to the backup directory on hard drive D. This example assumes that AdvancedCopy Manager has been installed at C:\Win32app.
C:\>copy C:\Win32app\AdvancedCopyManager\etc\swnode.ini D:\backup\ C:\>copy C:\Win32app\AdvancedCopyManager\etc\device.ini D:\backup\ |
Registry backup data size
Check the size of the file to be backed up.
In a command prompt window, use the copy command or another method to restore the following files.
environment-settings-directory\etc\swnode.ini environment-settings-directory\etc\device.ini
The drive letter of the shared disk for AdvancedCopy Manager share data:\etc\opt\swstorage\etc\swnode.ini The drive letter of the shared disk for AdvancedCopy Manager share data:\etc\opt\swstorage\etc\device.ini
Restore files saved to the \backup directory in D drive.
C:\>copy D:\backup\swnode.ini C:\Win32app\AdvancedCopyManager\etc\ C:\>copy D:\backup\device.ini C:\Win32app\AdvancedCopyManager\etc\ |
