ETERNUS SF Express V14.2 User's Guide

2.1 Hardware conditions

A storage system including Express requires the following hardware.

Table 2.1 Storage hardware conditions

Series name	Model name	Firmware version number
ETERNUS DX	DX60	V10L31 or later
	DX80
	DX90
	DX80 S2	V10L10 or later
	DX90 S2
FibreCAT SX	SX60	J200P30 or later
	SX80	J200P30 or later
	SX80 iSCSI	J210P04 or later
	SX88	J200P30 or later
	SX100	K100P11 or later

Note

• For Remote Advanced Copy between DX90 and DX90 S2, the DX90 firmware must be updated to V10L60 or later.

• For FibreCAT SX Disk storage system, only monitoring is supported.

Series name

PRIMERGY

Note

PRIMERGY high reliability HA model and PRIMERGY high reliability FT model are unsupported.

Table 2.3 Capacities required for servers on which to install Express

Type of Express	Memory requirement (Unit : MB)	Disk space requirement (Unit : MB)	Remarks
Express Manager	128	1792 + (A)	See "Repository".

Repository

When performance management is being performed, based on the type of target (ETERNUS DX60, DX80/DX80 S2, DX90/DX90 S2), the number of logical units involved, and the number of DE (Disk Enclosure), the required capacity given below becomes necessary.

(2) * (240 + (1.2 + 0.3 * number of DEs + 0.3 * (number of LUs + number of RAIDGroups[*1])) * (86400 / 60) + (95 * number of DEs) + (50 * (number of LUs + number of RAIDGroups[*1]))) / 1024 + 9 * (10.6 + 0.07 * (86400 / 60)) / 1024

[*1] The "number of RAIDGroups" is the number of RAIDGroups created from the LUs.

Example

When performing performance management of the ETERNUS DX80 system with 512 logical units, the following capacity is required.
(2 * (240 + (1.2 + 0.3 * 2 + 0.3 * (512 + 64)) * (86400 / 60) + (95 * 2) + (50 * (512 + 64))) / 1024) + (9 * (10.6 + 0.07 * (86400 / 60)) / 1024) = 549.1314MB

Table 2.4 Recommended specs of PC that starts Express Web GUI

Type of Express	CPU requirement (Unit : GHz)	Memory requirement (Unit : MB)
Express Web GUI	2.0 or more	1024 or more

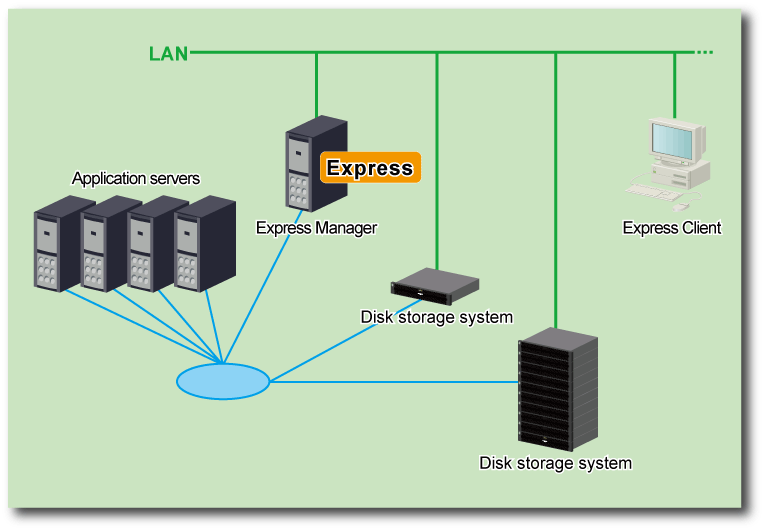

Figure 2.1 Schematic view showing hardware conditions

Point

• Number of Disk storage systems to be managed

  Express is recommended to manage less than 10 Disk storage systems.

• Connecting servers and Disk storage systems in any of the following methods

  • FC

  • iSCSI

  • SAS
