This chapter explains how to install the Systemwalker User Management function and the Systemwalker Single Sign-On function.
Refer to "Installation Procedure for Cluster Environments" for details on how to install these functions in cluster environments.
Note that the examples in this chapter and subsequent chapters (such as command execution examples and screen item setting examples) are based on the following example environments.
When the Interstage Directory Service is used as the Systemwalker authentication repository
The installation procedures used when the Interstage Directory Service is used as the Systemwalker authentication repository are explained using the following sample configuration.

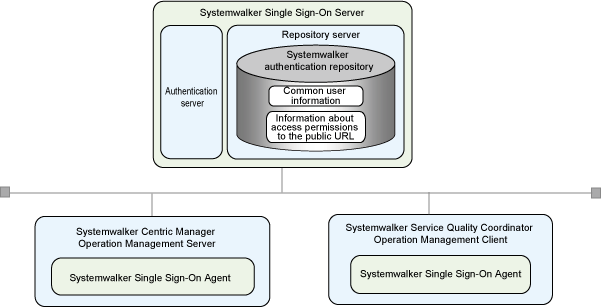

Sample configuration
Item | Example |
|---|---|
Host name | REPOSERVER.fujitsu.com |
Certificate environment
Item | Example |
|---|---|
Certificate | Simple certificate for Systemwalker |
Certificate nickname | SystemwalkerCert |
Validity period | 7,300 days |
Web server used for the authentication server
Item | Example |
|---|---|
Web server name | swAuth |
Port number | 40000 |
Item | Example |
|---|---|
Repository name | swrepo |
Port number | 636 |
Administrator DN | CN=Administrator, DC=fujitsu, DC=com |
Password | password |
Public directory | DC=fujitsu, DC=local |
User storage directory | OU=system operations section, OU=system operations department, DC=fujitsu, DC=local |
Systemwalker Centric Manager
Item | Example |
|---|---|
Port number | 80 |
Protected path | /Systemwalker/ /MpScript/ |
Systemwalker Service Quality Coordinator
Item | Example |
|---|---|
Port number | 80 |
Protected path | /SSQC/ |
When Active Directory is used as the Systemwalker authentication repository
The installation procedures used when Active Directory is used as the Systemwalker authentication repository are explained using the following sample configuration.

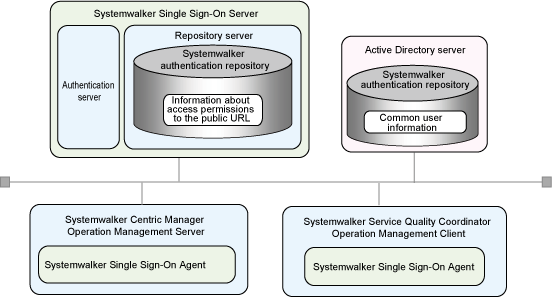

Sample configuration
Item | Example |
|---|---|
Host name | SWSSO.fujitsu.com |
Certificate environment
Item | Example |
|---|---|
Certificate | Simple certificate for Systemwalker |
Certificate nickname | SystemwalkerCert |
Validity period | 7,300 days |
Web server used for the authentication server
Item | Example |
|---|---|
Web server name | swAuth |
Port number | 40000 |
Approval information storage directory
Item | Example |
|---|---|
Repository name | swrepo |
Port number | 389 |
Administrator DN | CN=Administrator, DC=fujitsu, DC=com |
Password | password |
Public directory | DC=fujitsu, DC=com |
Item | Example |
|---|---|
Host name | REPOSERVER.fujitsu.com |
Port number | 636 |
Administrator DN | CN=Administrator, CN=Users, DC=fujitsu, DC=com |
Password | password |
Public directory | DC=fujitsu, DC=local |
User storage directory | OU=system operations section, OU=system operations department, DC=fujitsu, DC=local |
Systemwalker Centric Manager
Item | Example |
|---|---|
Port number | 80 |
Protected path | /Systemwalker/ /MpScript/ |
Systemwalker Service Quality Coordinator
Item | Example |
|---|---|
Port number | 80 |
Protected path | /SSQC/ |
