3.1.5 Installing an Enterprise Manager

Preparing for installation

Before running the Installer, refer to "1.2.4 Installing an Enterprise Manager" to check the installation conditions and collect the necessary information.

Prepare the product CD-ROM (Server) and refer to "Chapter 3 Installation and Setup" for information about installer startup and screens.

Installation procedure

This section explains the procedure for installing an Enterprise Manager.

Windows

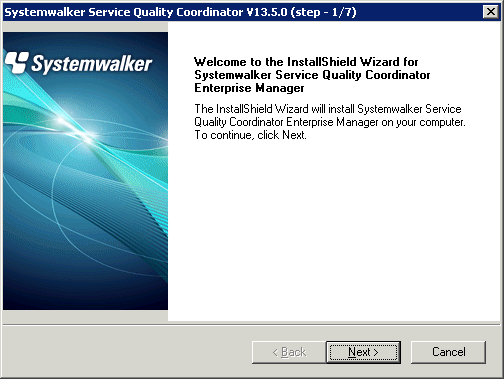

Select Installation of Enterprise Manager.

Click Next.

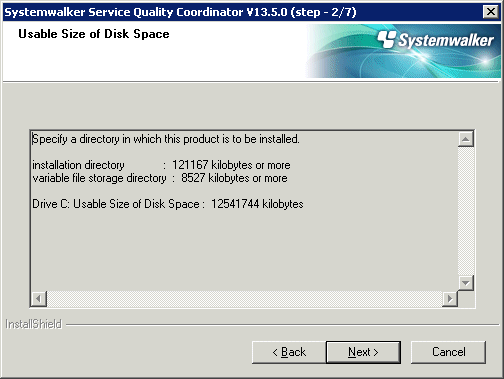

Available disk space display

Click Next if the available disk space is sufficient.

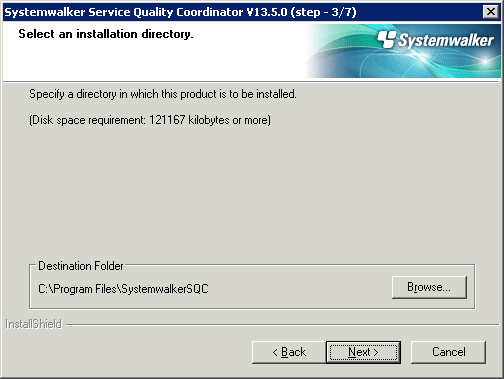

Select the installation directory

Check that the installation directory is correct and click Next.

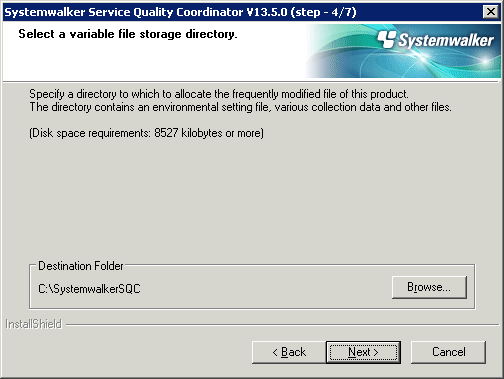

Select the variable file storage directory

Confirm that the variable file storage directory is correct and click Next.

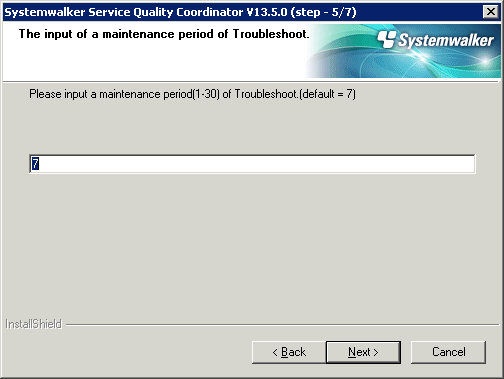

Enter the Troubleshoot retention period

Enter the Troubleshoot retention period and click Next.

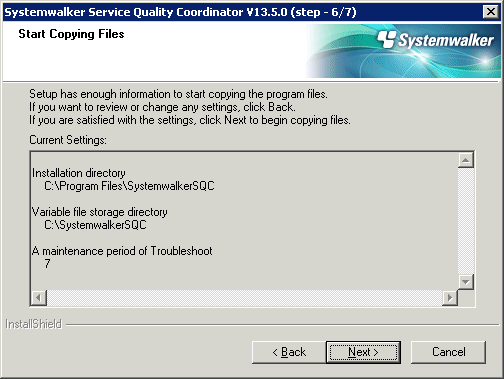

Confirm commencement of the file copy process

Confirm that the settings are correct and click Next.

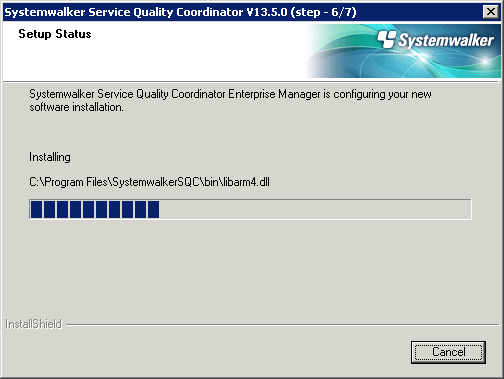

Setup status

Installation will commence.

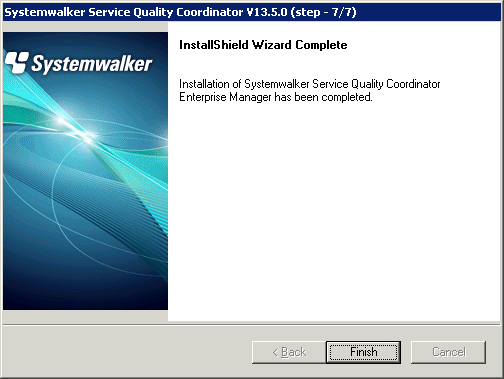

InstallShield Wizard completed

Click Finish to finish installation.

UNIX

================================================================================
                Systemwalker Service Quality Coordinator Setup
                                     V13.5.0
 All Rights Reserved, Copyright(C) FUJITSU LIMITED && FUJITSU AUSTRALIA LIMITED
                                    2003-2011
================================================================================

<< Select Installation type >>

 1.Enterprise Manager
 2.Manager
 3.Proxy Manager
 4.Agent for Server
 5.Agent for Business

--------------------------------------------------------------------------------
Please specify installation type. [?,q] ==> 1

Enter "1" and press the Enter key.

Confirm the installation directory

Default installation information is following:
	Program install directory        : /opt
	Fixed configuration directory    : /etc/opt
	Variable configuration directory : /var/opt
Do you want to change the above information? (default: n)[y, n, ?, q]
> n

If the installation directory is correct, enter "n" and press the Enter key.

If "y" is entered

The following window will be displayed to allow the user to change the installation directory:

Please specify program install directory. (default: /opt)[?, q]
> /opt2
Please specify fixed configuration directory. (default: /etc/opt)[?, q]
> /etc/opt2
Please specify variable configuration directory. (default: /var/opt)[?, q]
> /var/opt2

Checking Troubleshoot retention period

Default troubleshoot cycle is following:
	Troubleshoot Cycle: 7
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

Enter "n" after confirming the Troubleshoot retention period, and press the Enter key.

If "y" is entered

The following window will be displayed to allow the user to change the installation directory:

Please specify Troubleshoot cycle.
 (default: 7)[1-30, ?, q]
> 10

Confirm the commencement of installation

Do you want to continue with the installation of Systemwalker SQC Enterprise Manager [y,n]

Enter "y" and press the Enter key to start installation.
