4.4 Scheduled Report Registration View

This section explains how to use the Scheduled Report Registration View.

By registering scheduled reports and executing the Scheduled Report Creation Command, daily, weekly and monthly scheduled reports can be displayed in the "4.7 Scheduled Report View".

Starting the Scheduled Report Registration View

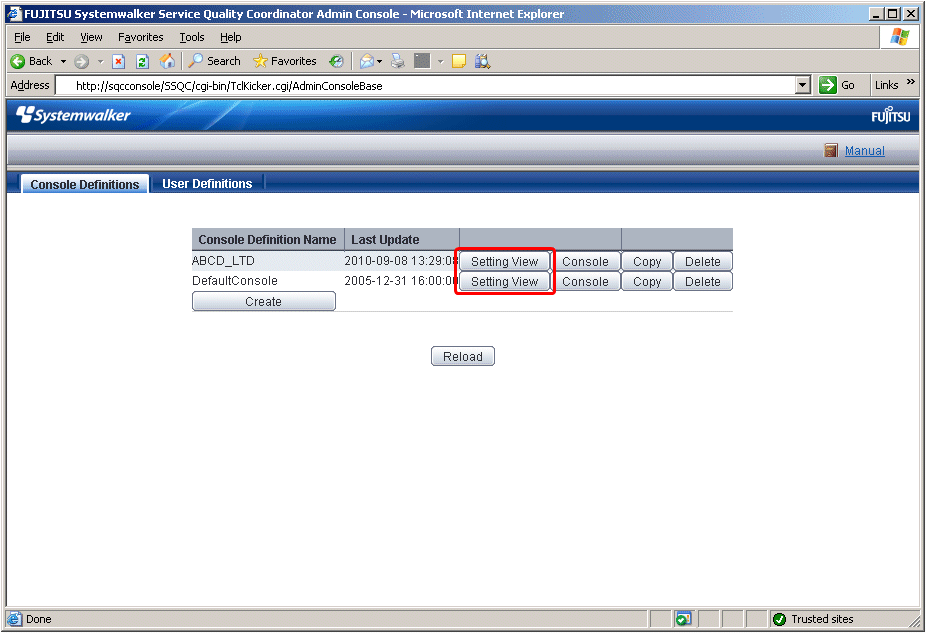

Open the Setting View by clicking the Setting View button on the Console Definitions tab of the Admin Console.

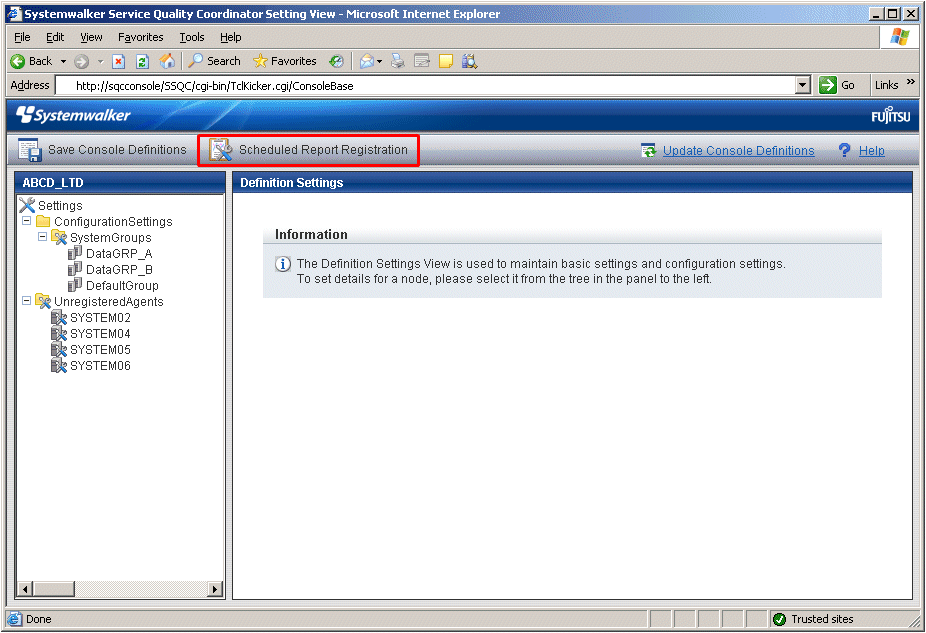

Select Register Scheduled Report menu from the global navigation bar in the Console window.

Note

Do not perform operations in the Scheduled Report Registration View using the pop-up context menu that appears when the right mouse button is clicked.

Window configuration

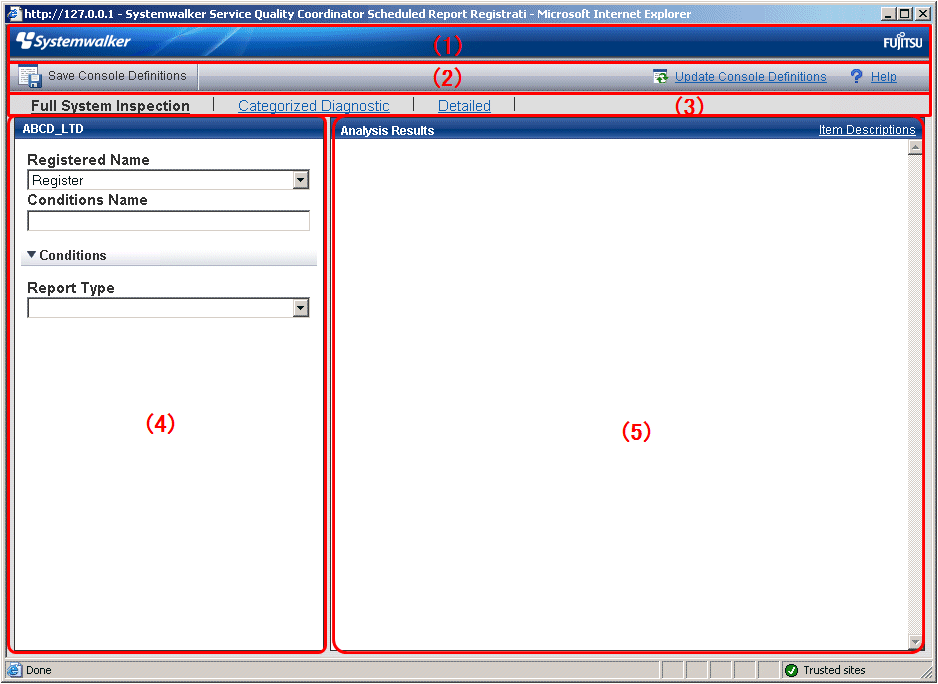

The Scheduled Report Registration View will appear as below.

Basic configuration

The Scheduled Report Registration View is organized as shown in the following table.

Item No.	Component	Description
(1)	Global header	The Systemwalker and Fujitsu logos are displayed.
(2)	Global navigation bar	The menus are as follows: Save Console Definitions Saves the console definitions Update Console Definitions Reloads the console definitions Help Opens User's Guide (Console Edition).
(3)	Menu area	The menus are as follows: Full System Inspection This analysis window enables system administrators to periodically inspect the operational status of the system. Analysis is performed by system group. Categorized Diagnostic This analysis window is for primary fault isolation of bottlenecks within servers where problems have occurred. Analysis is performed by server or by instances in the server. Details This analysis window is for checking detailed information in terms of particular data.
(4)	Analysis conditions area	Report conditions can be set and registered in the full system inspection, categorized diagnostic, and detailed report windows.
(5)	Content display area	Each content from full system inspection, categorized diagnostic, and detailed reports is displayed.

Basic operation

The Scheduled Report Registration View tabs perform the following operation.

Operation	Description
Register report conditions	Registers any report conditions. Select Register in Registered Report Name and enter a condition name in Category. Enter the required report conditions, then items other than the dates for starting and finishing reports are registered when the Register button is pressed.
Edit report conditions	Change the content of registered report conditions. Select the condition name to be edited in Registered Report Name. Enter the required report conditions, then items other than the dates for starting and finishing reports are registered when the Save Over Current button is pressed.
Copy report conditions	Copies the content of registered report conditions. Select the condition name to be copied in Registered Report Name. Enter the required report conditions, then the dialog appears when the Register button is pressed, so enter the condition name and click the OK button. Items other than the dates for starting and finishing reports are registered.
Delete report conditions	Deletes a registered report condition. Select the condition name to be deleted in Registered Report Name and press the Delete button.
Test report conditions	Runs a test display to check that the specified report conditions are correct. Refer to "4.5 How to Use the Scheduled Report Registration View" for details on how to use the scheduled report registration view.

Point

If the registered content of a scheduled report is changed (registered, edited, copied or deleted) using the Scheduled Report Registration View, the Save Console Definitions button on the global navigation bar must be clicked.
