A storage system including Express requires the following hardware.
Series name | Model name | Firmware version number |
|---|---|---|
ETERNUS DX | DX60 | V10L31 or later |
DX80 | ||
DX90 | ||
FibreCAT SX | SX60 | J200P30 or later |
SX80 | J200P30 or later | |
SX80 iSCSI | J210P04 or later | |
SX88 | J200P30 or later | |
SX100 | K100P11 or later |
Note
For FibreCAT SX Disk storage system, only monitoring is supported.
Series name |
|---|
PRIMERGY |
Note
PRIMERGY high reliability HA model and PRIMERGY high reliability FT model are unsupported.
Type of Express | Memory requirement | Disk space requirement | Remarks |
|---|---|---|---|
Express Manager | 128 | 1792 + (A) | See "Repository". |
Repository
When performance management is being performed, based on the type of target (ETERNUS DX60/DX80/DX90), the number of logical units involved, and the number of DE (Disk Enclosure), the required capacity given below becomes necessary.
(2) * (240 + (1.2 + 0.3 * number of DEs + 0.3 * (number of LUs + number of RAIDGroups[*1])) * (86400 / 60) + (95 * number of DEs) + (50 * (number of LUs + number of RAIDGroups[*1]))) / 1024 + 9 * (10.6 + 0.07 * (86400 / 60)) / 1024 [*1] The "number of RAIDGroups" is the number of RAIDGroups created from the LUs. |
Example
When performing performance management of the ETERNUS DX80 system with 512 logical units, the following capacity is required.
(2 * (240 + (1.2 + 0.3 * 2 + 0.3 * (512 + 64)) * (86400 / 60) + (95 * 2) + (50 * (512 + 64))) / 1024) + (9 * (10.6 + 0.07 * (86400 / 60)) / 1024) = 549.1314MB
Type of Express | CPU requirement | Memory requirement |
|---|---|---|
Express Web GUI | 2.0 or more | 1024 or more |

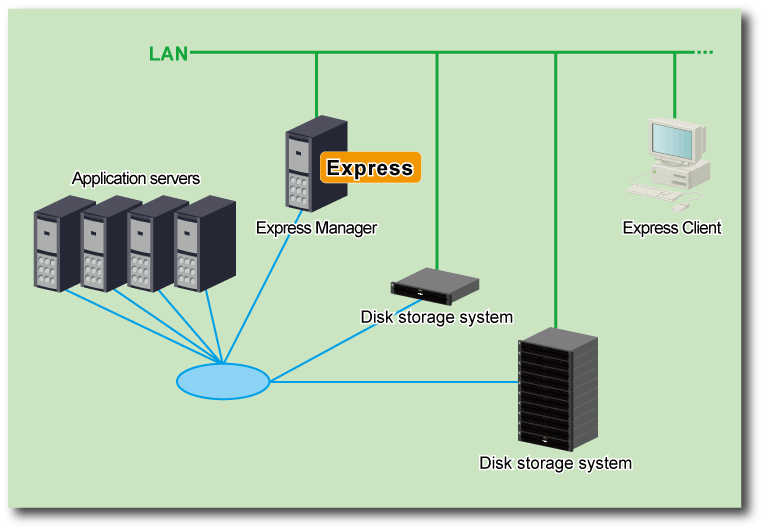

Figure 2.1 Schematic view showing hardware conditions
Point
Number of Disk storage systems to be managed
Express is recommended to manage less than 10 Disk storage systems.
Connecting servers and Disk storage systems in any of the following methods
FC
iSCSI
SAS
