2.6.2 Configure userApplication

Start RMS Configuration Wizard

Start the RMS Configuration Wizard and configure userApplication.

The definition name that is specified for the hvw command should be the same as that is specified at "2.4.2 userApplication creation".

Edit userApplication

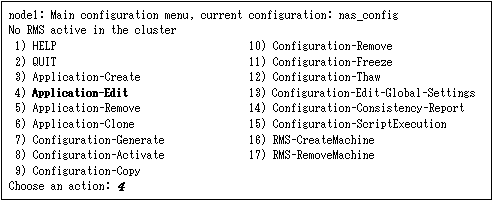

1. The RMS Configuration Wizard is displayed. Select Application-Edit

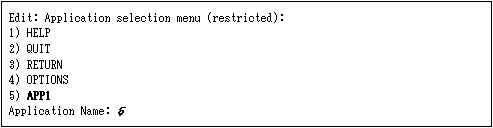

2. Select userApplication from a list of userApplication.

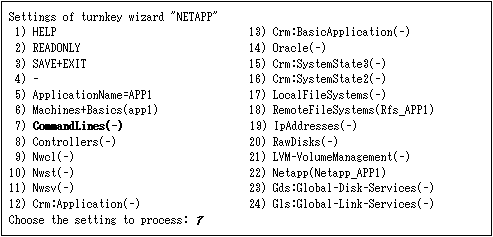

3. Select CommandLines in the NETAPP turnkey wizard..



4. Select Additional Start Command in the CommandLines wizard. Then, select FREECHOICE and specify the Online script that is created at 2.6.1.

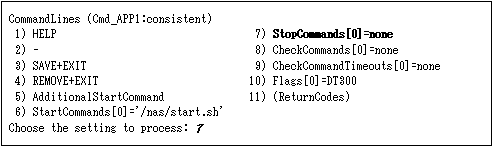

5. You return to the CommandLines wizard. Select Stop Command [0]. Then, select FREECHOICE and specify the Offline script that is created at 2.6.1.

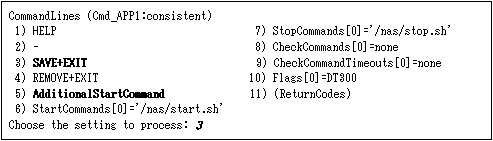

6. You return to the Commandlines wizard. If you have more user applications you want to use, add it using Additional Start Command. When it is completed, select SAVE+EXIT.

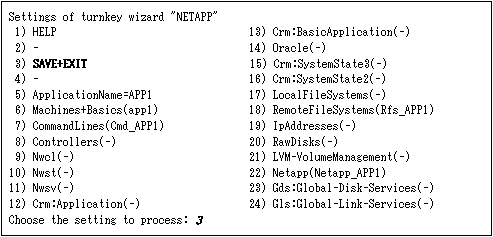

7. You return to the NETAPP turnkey wizard. Create or edit other userApplication resources if necessary. When it is completed, select SAVE+EXIT.

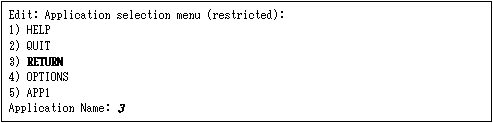

8. You return to a list of userApplication. If you want to configure other userApplication, select that userApplication. If it is completed, select RETURN.



9. You return to the RMS Configuration Wizard. Select Configuration-Generate, and then Configuration-Activate, and enables the configuration. When it is done, select QUIT.

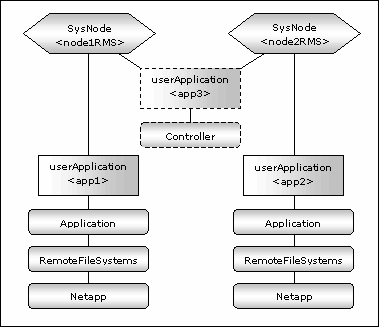

Scalable operation

userApplication is configured as follows:

Standby operation

userApplication is configured as follows:
