ETERNUS SFAdvancedCopy Manager 14.0 Operator's Guide forCluster Environment

A.1.2 Creating an Fsystem resource

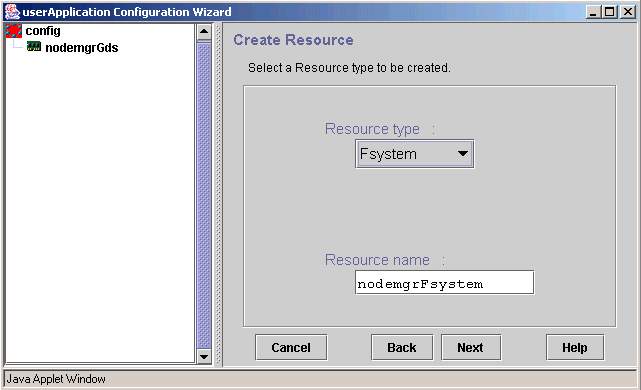

1. Select [Create Resource] from the top menu of the "userApplication Configuration Wizard".



2. Select "Fsystem" for the resource type.

   "nodemgrFsystem" is specified for the resource name in the following example.

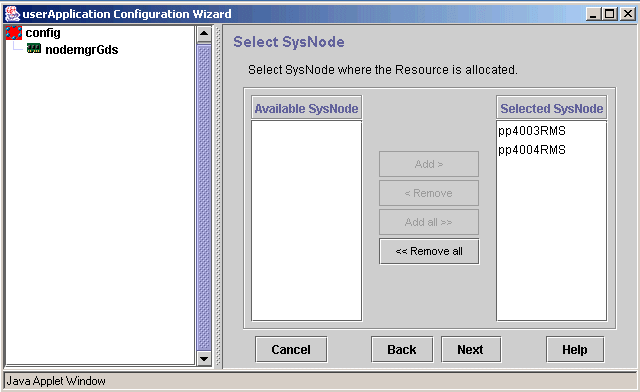

3. Select SysNode to set the resource in it.

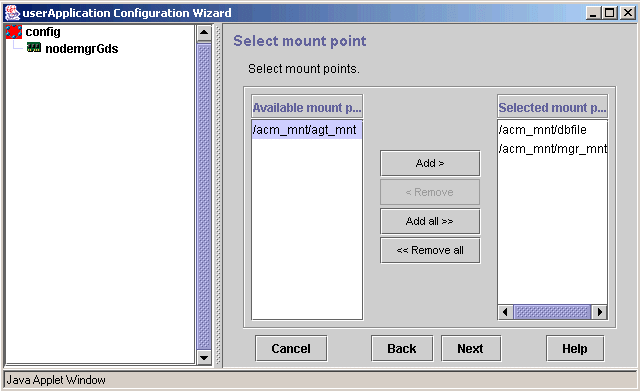

4. Select a mount point.

   Register the mount point of the shared disk for shared data.

   For a Storage management server transaction, also register the mount point of the shared disk for the repository.

   The mount point "/acm_mnt/dbfile" and "/acm_mnt/mgr_mnt" is specified in the following example.

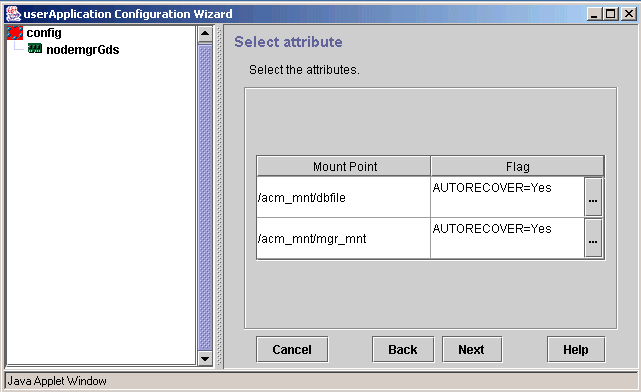

5. Specify the attributes of the mount point.

   For details on mount point attributes, refer to the "PRIMECLUSTER Installation and Administration Guide."

   "yes" is specified for the AUTORECOVER attribute in the following example.

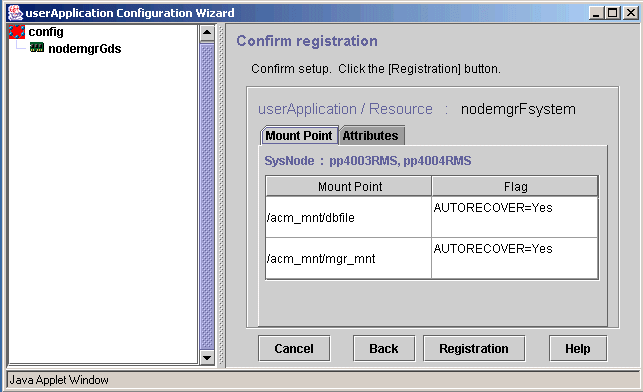

6. Confirm the information registered for Fsystem.

   For details on the resource attributes, refer to the "PRIMECLUSTER Installation and Administration Guide."
