This chapter explains how to install the Agent function of the Windows version AdvancedCopy Manager.
Note
At installation, all the nodes must be installed in the same environment (ie, the local drive name, port number, and install directory must be the same for both).
Do not install the Agent function on a shared disk.
The port number for the communication service to be specified during the installation is for communication service for local transactions. Set the port number for cluster transactions in the following location according to the operation method.
Perform the "Customization" procedure for the cluster system in "Chapter 4 Customization of Storage Management Server Transactions and Storage Server Transactions".

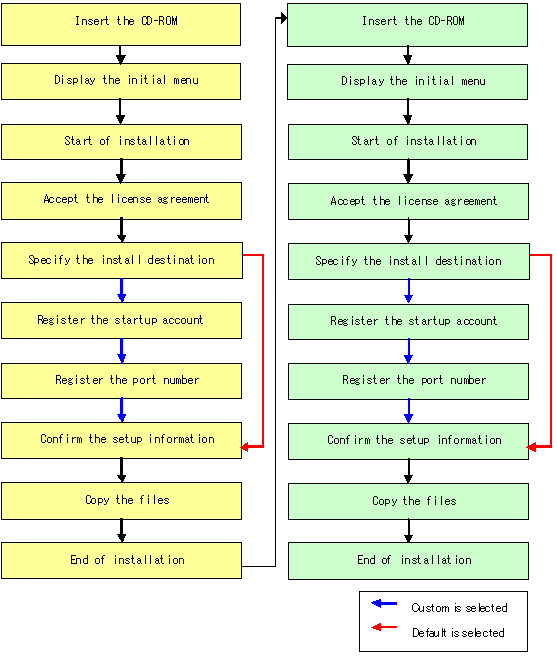

The flow of the installation is shown below. The node on which installation is performed first is called the primary node; the other node becomes the secondary node.
For a cascade topology, follow the procedure for the secondary node on every other secondary node.
Install the Agent function with the following procedure.
Log on to the primary node.
Log on to the primary node. Log on as the administrator of the terminal where the installation will be done. Ignore "(Secondary node)" in the following explanation.

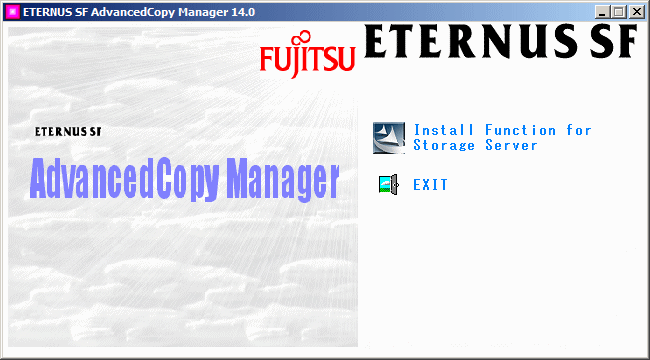

Insert the AdvancedCopy Manager CD-ROM (Agent Program) into the drive and an initial [ETERNUS SF] window will be displayed. Click [Install Function for Storage Server].
Only for Windows Server 2008 x64

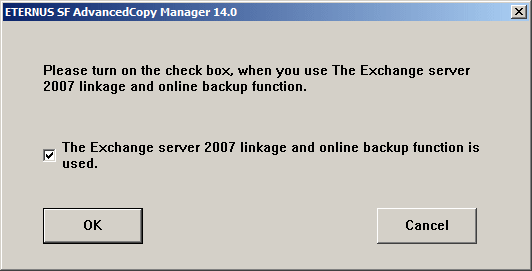

In the [Select Exchange Function Window], select whether to use the ExchangeServer2007 linked online backup function.
If the check box is selected
It is possible to use the ExchangeServer2007 linked online backup function. However, use of the Symfoware link function is restricted.
If the check box is not selected
It is possible to use the Symfoware link function. However, use of the ExchangeServer2007 linked online backup function is restricted.

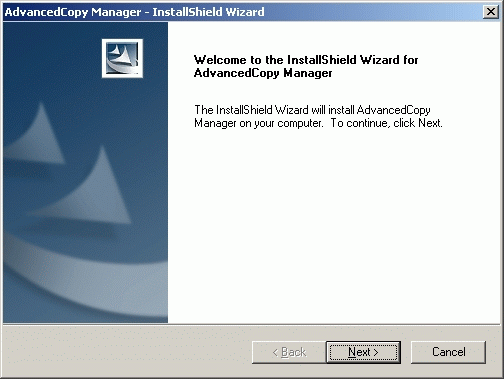

The next window is displayed. Check the displayed contents, then click the [Next] button.

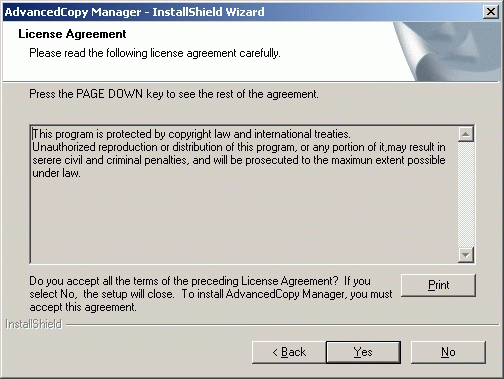

Accept the use contract permission displayed on the [License Agreement] window by clicking on [Yes].
Confirm the displayed contents, and click the [Yes] button.

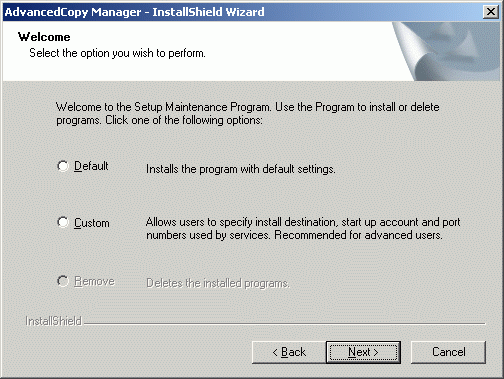

Click "Default" or "Custom" in the (Welcome) window, and then click on [Next].
If [Default] is selected
The install information on the following windows need not be set (steps 6 to 8 are not required):
[Set install destination] window
[Startup/Account registration] window
[Register port number] window
An error check is performed automatically for the default install information in the omitted screens.
If an error is detected: A warning dialog is displayed and the display switches back to that window.
If no errors are detected: A warning dialog is displayed and the [Start copying files] window is displayed.
For details on default installation information and error check contents, refer to the "ETERNUS SF AdvancedCopy Manager Installation and Setup Guide", section "Installation of the Agent" > "Windows Platform".
If [Custom] is selected
Installation information must be set in all the installation windows.
Enter the required information in the windows displayed in step 8 and subsequent steps.

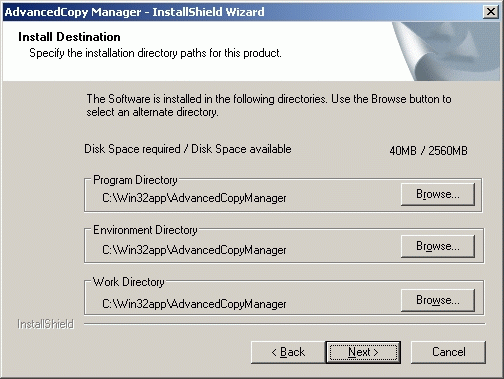

Specify the system to be installed.
(Primary node)
If this product is to be installed in directories other than those displayed (default directories), click the [Browse] button to select the desired directories. After all the proper directories have been selected, click the [Next] button. Note: directories with spaces their names (e.g., Program Files) must not be specified. Do not install Agent function of AdvancedCopy Manager on a shared disk.
(Secondary node)
Specify the same drive and directories as those specified for the primary node.

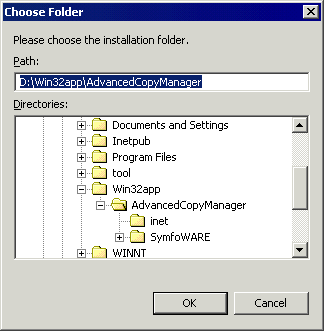

When one of the [Browse] buttons is clicked, the following window is displayed, allowing the selection of other than the defaulted directories:

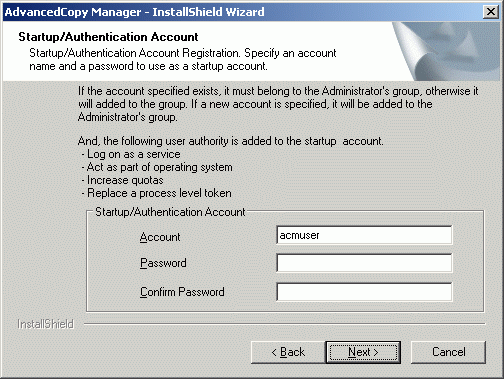

Input the startup account to the [Register Startup Account] window.
(Primary node)
Input the account's name belonging to the Administrator's group with a password, and click the [Next] button. The account name and password must satisfy the following conditions:
An account name and password that can be specified in the operating system
For details on the startup account, refer to the "ETERNUS SF AdvancedCopy Manager Installation and Setup Guide", section "Installation of the Manager" > "Prerequisites for Windows Platform" > "Startup account".
If a previously unregistered name is entered, it should be registered as a new account. At this time, the system automatically sets the password to never expire, and assigns it to the Administrator's group. In addition, the system automatically sets the following user's authority to allow them to:
Log on as a service
Act as part of the operating system
Increase quotas
Replace a process level token
(Secondary node)
Specify the same account name and password as those specified for the primary node.

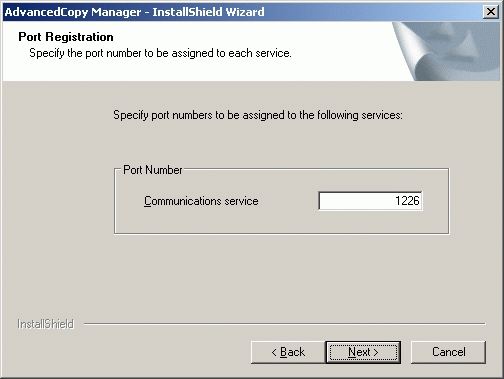

Input the number of the port to be allocated to the service on the [Register Port Number] window.
(Primary node)
Enter the port number to be allocated to each service within the following range:
5001 to 65535
The first displayed value is a recommended value in a non-cluster environment and is not always unique.
The number displayed by default is recommended, but it is not always a unique number.
To perform cluster operation, change all port numbers so that they are within the range as indicated above.
After entering port numbers completely, click the [Next] button. If a port number that has already been assigned was entered, this window appears again.
(Secondary node)
Specify the same values for all items as the values specified for the primary node.

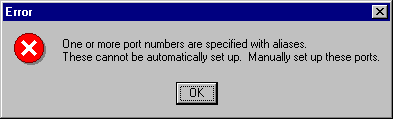

If the AdvancedCopy Manager service name is defined with an ALIAS, the following window will be displayed and the port number specified on the previous window is ignored. The installation proceeds.
Configure the port manually, by editing the file C:\WINDOWS\system32\drivers\etc\Services.

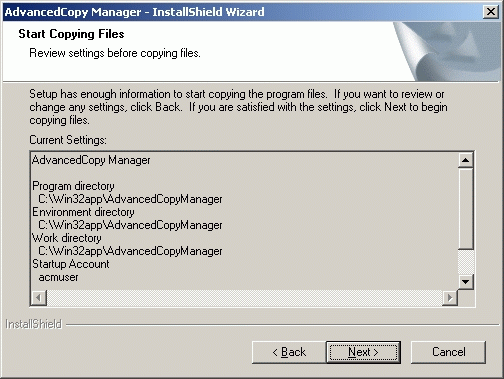

Confirm the settings on the [Start Copying Files] window.
If no errors are detected, click the [Next] button. To correct or otherwise change any settings, click the [Back] button.
Copying starts.

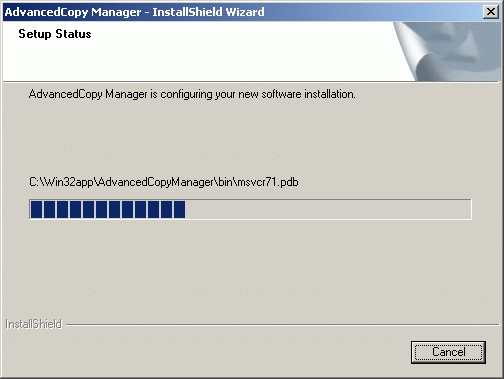

The file transfer that is in progress can be viewed on the [Setup Status] window.

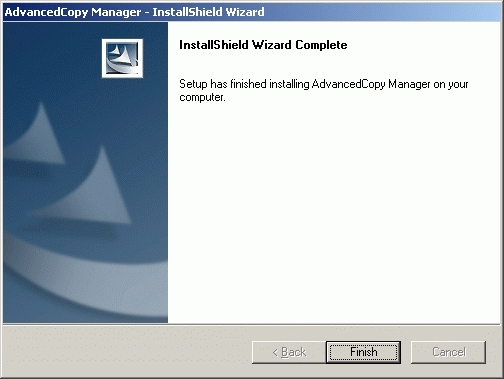

Finish the installation.
Click the [Finish] button to complete the installation.
(Primary node)
Next, start the installation on the secondary node by continuing with step 12.
(Secondary node)
The installation on both nodes is now complete. To provide the cluster construction for a Storage Server transaction, see "Chapter 3 Preparations for Customizing Storage Management Server Transactions, Storage Server Transactions, and Tape Server Transactionss".
Log on to the secondary node.
Log on to the secondary node. Log on as the administrator of the terminal where the installation is to be performed.
Go back to 2.
Starting with step 2, perform the same installation procedure for the secondary node as for the primary node. Ignore (Primary node) in the following explanation.
