ETERNUS SF Storage Cruiser 14.0 User's Guidefor Virtual Storage Conductor

A.2.5 Displaying the virtual enclosure (root node)

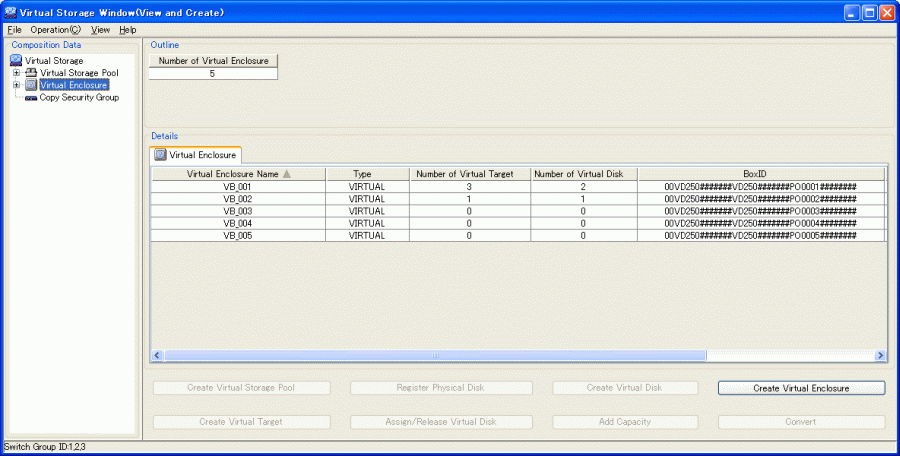

The following describes the window displayed when you select the Virtual Enclosure (root).

Table A.12 Display information of "Outline area (Virtual Enclosure [root])"

Item

Description

Number of Virtual Enclosure

Total number of virtual enclosures created

Table A.13 Display information of "Details area (Virtual Enclosure [root])"

Item

Description

Virtual Enclosure Name

Name of the virtual enclosure created

Type

Displays 'VIRTUAL'

Number of Virtual Target

Number of virtual targets created from the virtual enclosure pool concerned

Number of Virtual Disk

Total number of virtual disks registered in the virtual enclosure

BoxID

Specific identifier for the virtual enclosure

Number of Maximum Copy Sessions

The maximum number of replication sessions that can be performed by ETERNUS SF AdvancedCopy Manager for virtual disks in the virtual enclosure
