A.2.4 Displaying the virtual disk

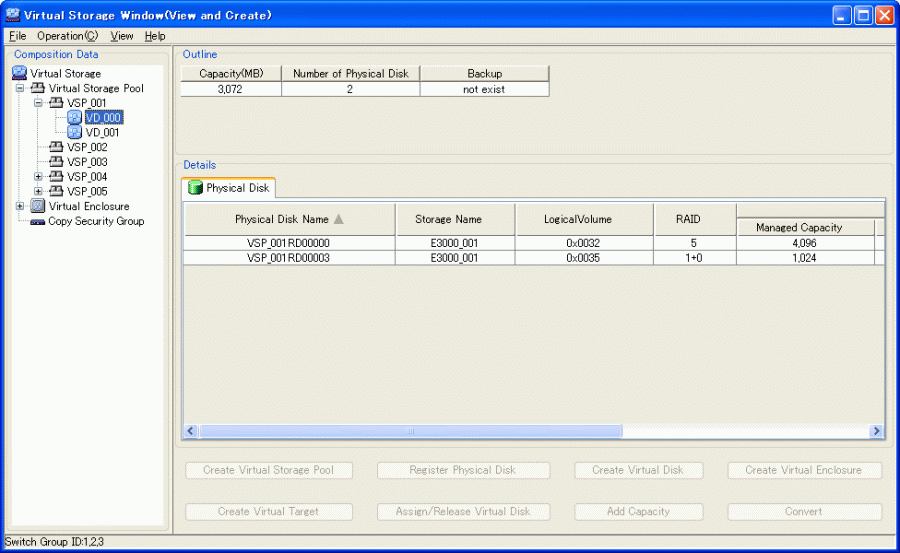

The following describes the window displayed when you select the virtual disk name under the Virtual Storage Pool in the Composition Data tree.

Table A.10 Display information of "Outline area (Virtual Disk)"

Item

Description

Remarks

Encryption

Encryption attribute of the virtual disk (encryption, non-encryption)

Hidden by default

Disk type

Disk type of the virtual disk (nearline, online)

Hidden by default

Capacity (MB)

Virtual disk capacity

Number of Physical Disk

Number of physical disks constituting the virtual disk

Backup

Whether backup disks are available

Table A.11 Display information of "Details area (Physical Disk)"

Item

Description

Remarks

Physical Disk Name

Name of the physical disk registered in the virtual storage pool

Storage Name

Name of the physical disk storage

Product ID

Product ID of the storage

Hidden by default

Serial Number

Serial number of the storage

Hidden by default

AffinityGroup:LUN

Affinity group number, logical unit number

Hidden by default

LogicalVolume

Storage internal number of the physical disk

RAID

RAID level of the physical disk (1+0,1,5,6,0)

Encryption

Encryption attribute of the physical disk (encryption, non-encryption)

Hidden by default

Disk type

Disk type of the physical disk (nearline, online)

Hidden by default

Capacity (MB)

Managed Capacity

Physical disk capacity

Assigned

Physical space assigned to a virtual disk

No Assigned

Physical space not assigned to a virtual disk

VS900 management area

Physical disk capacity of a VS900 Management Area

Number of Non-assigned Extent

Total number of extents available on the physical disk

Hidden by default
