6.1.1 Overview of Monitoring Function

This section explains Shunsaku monitoring.

The status of the Shunsaku system and each process can be monitored.

The following information can be monitored:

• Operation information
• Connection information
• Setup information (operating environment)

This information can also be output in CSV format.

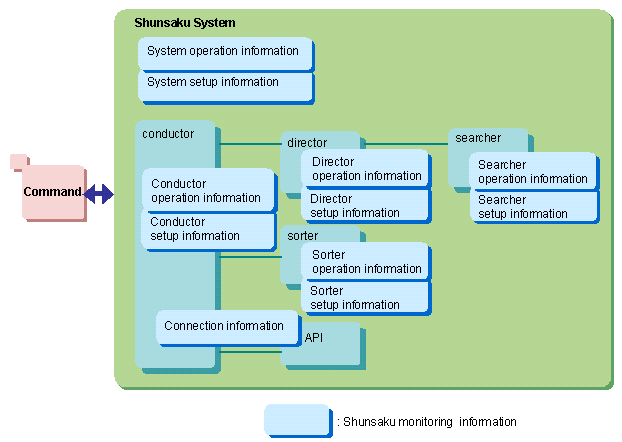

The following diagram shows the configuration for Shunsaku monitoring information.

[Figure : Configuration of Monitoring Information]

[Table 6-1 Monitoring Targets and Information]

Monitoring information	Monitoring target	Explanation	Reference
Operation information	System operation information	Displays the operating status of each Shunsaku system process on the server.	6.2.1 Monitoring System Operation Information
	Conductor operation information	Displays the operating status of the conductor, and information about directors and sorters under the conductor.	6.2.2 Monitoring Conductor Operation Information
	Director operation information	Displays the operating status of directors and information about the searchers under them.	6.2.3 Monitoring Director Operation Information
	Sorter operation information	Displays the operating status of sorters.	6.2.4 Monitoring Sorter Operation Information
	Searcher operation information	Displays the operating status of searchers.	6.2.5 Monitoring Searcher Operation Information
Connection information	Connection status	Displays the status of the connection between applications and the Shunsaku system.	6.3 Monitoring Conncection Information
Setup information	System setup information	Displays information about the parameters specified in the system environment file.	6.4.1 Monitoring System Setup Information
	Conductor setup information	Display information about the parameters specified in conductor environment file.	6.4.2 Monitoring Conductor Setup Information
	Director setup information	Display information about the parameters specified in director environment file.	6.4.3 Monitoring Director Setup Information
	Sorter setup information	Display information about the parameters specified in sorter environment file.	6.4.4 Monitoring Sorter Setup Information
	Searcher setup information	Display information about the parameters specified in searcher environment file.	6.4.5 Monitoring Searcher Setup Information
