L.3.4 Extracting Column Data as Attribute Values

The following example shows how to extract XML documents by using column data as attribute values.

Results Table

The following mapping rule generates XML documents in where a specific column value in the results table is used as the attribute value for a particular tag.
This mapping rule shows an example of how to set an attribute named 'LOC' for the JOB tag, and to use values in column F as the values for this attribute.

Mapping Rule

<?xml version="1.0"?>
<MappingRule>
<parentRule id="p1" tagname="PERSON" />
<columnRule id="c1" colname="A" tagname="NUM" parent="p1" />
<columnRule id="c2" colname="B" tagname="NAME" parent="p1" />
<columnRule id="c3" colname="C" tagname="JOB" parent="p1" />
<attributeRule id="a1" colname="F" attrname="LOC" attrof="c3" />
</MappingRule>

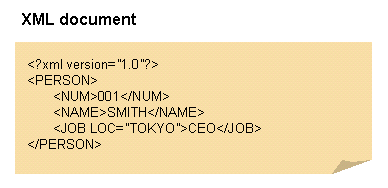

This mapping rule outputs the following XML document:

[Figure L-6 XML Output Data]
