10.2.2.1 Configuration of Web Application Cooperated with Shunsaku

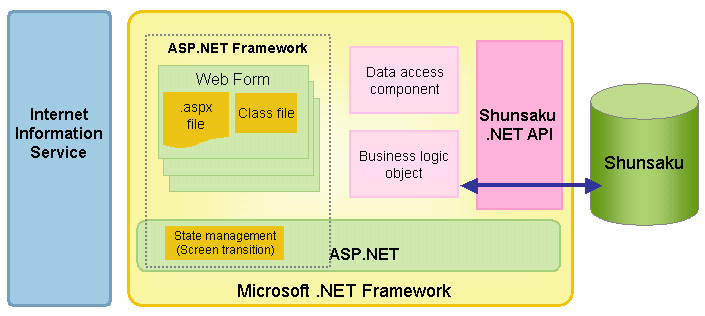

The following diagram shows the configuration of Web application cooperated with Shunsaku.

[Figure 10-3 Configuration of Web Application Cooperated with Shunsaku]

• Web Form

  Web form is for creating user interfaces. It contains with .aspx file and the class file. The number of files created is equal to the number of screens.

  .aspx file contains with HTML text and the control. Enter the processes such as the process when clicking the button and the event process such as screen transition. (Use the state management function in the ASP.NET framework for the screen transition process.) The extension of the class file is depended on the language specified at the project. The extension is represented as .aspx.cs for C# .NET and .aspx.vb for VB .NET.

• Data Access Component

  Add the .NET API component, and then enter the process of connection to Shunsaku and the data manipulation process.

• Business Logic Object

  Enter the method implemented with the business rule or the subroutine. Create the business logic object for each job.
