10.1 .NET API Overview

The .NET APIs are interfaces used to manipulate Shunsaku data from .NET application.

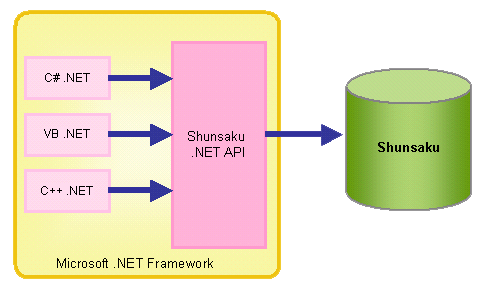

[Figure 10-1 The Position of .NET APIs]

The following table is the list of the .NET API classes.

[Table 10-1 .NET API Classes]

Class	Description
ShunKeyRequirement	This class holds the condition of the direct access key.
ShunPosition	This class holds the position information of search results and the search direction.
ShunRecord	This class represents one record of Shunsaku data. It holds ShunRecordID and the data.
ShunRecordCollection	This class represents the collection of ShunRecord.
ShunRecordEnumerator	This class enumerates the ShunRecords which are contained in the ShunRecordCollection.
ShunRecordID	This class represents the Shunsaku record ID.
ShunResultSet	This class represents the search results.
ShunSearchRequirement	Holds the search conditions.
ShunService	This class connects to Shunsaku and provides the method for manipulating data.
ShunAPIConfigException	This class is the exception thrown when the API environment file is error.
ShunConnectionTerminatedException	This class is the exception thrown when the connection to Shunsaku is closed forcibly.
ShunContinuousException	This class is the exception thrown when the warning level error occurs. Eliminate the cause of the error, and then re-execute the process from the point where the error occurred.
ShunException	This class is the base class for all exception classes in Shunsaku.
ShunSystemException	This class is the exception thown when the connection to Shunsaku is closed forcibly due to the unpredictable errors.
ShunTimeoutException	This class is the exception thrown when the connection to Shunsaku is closed forcibly due to the timeout.
ShunTransactionRolledbackException	This class is the exception thrown when the transaction is cancelled.

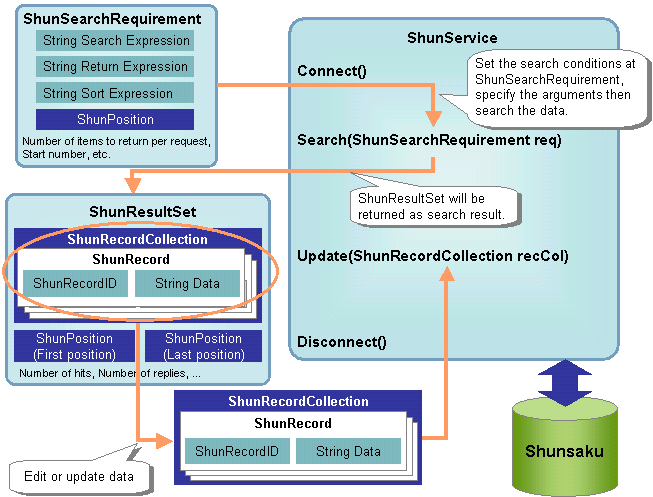

[Figure 10-2 The Relationship of Main Classes in .NET API]

Refer to 10.3.5 Error Handling for more information on exception classes.

Refer to the NET API Reference for more information on .NET APIs
