Interstage Shunsaku Data Manager Installation Guide - Solaris(TM) Operating System -

1.2 Multi-server Configurations

This section describes extended system configurations for Shunsaku.

These configurations can be customized to suit particular user requirements.

Shunsaku can be installed and set up using combinations of the following system configurations:

• Systems operating with additional director servers
• Systems operating with additional sort servers

The procedure for setting up these configurations is to first set up a system operating with searchers on separate servers and then add servers.

Refer to Adding Directors and Director Servers and Adding Sorters and Sort Servers in the Operator's Guide for details.

The following figure shows the system configuration.

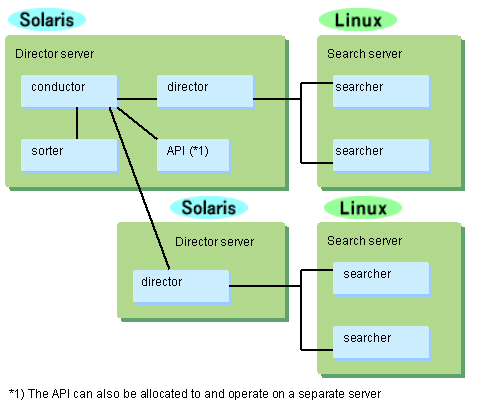

[Figure 1-2 Systems Operating with Additional Director Servers]

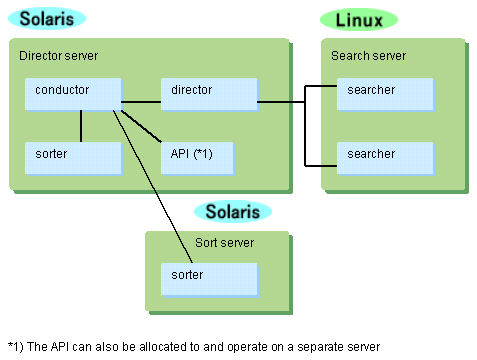

[Figure 1-3 Systems Operating with additional sort servers]
