ETERNUS SF Disk Space Monitor User's Guide - Microsoft(R) Windows Server(TM) 2003/Solaris(TM) Operating System/Linux - 13.0

7.1 Starting the Admin Console

The Admin Console window is started by specifying the following URL in a Web browser.

http://host name of the operation management client/SSQC/XXX.html

The "XXX" part is the user name that was registered with the Admin Console window.

To make separate basic authentication settings for each user, refer to Section 16.3, "How to Make Basic Authentication Settings for Operation Management Client".

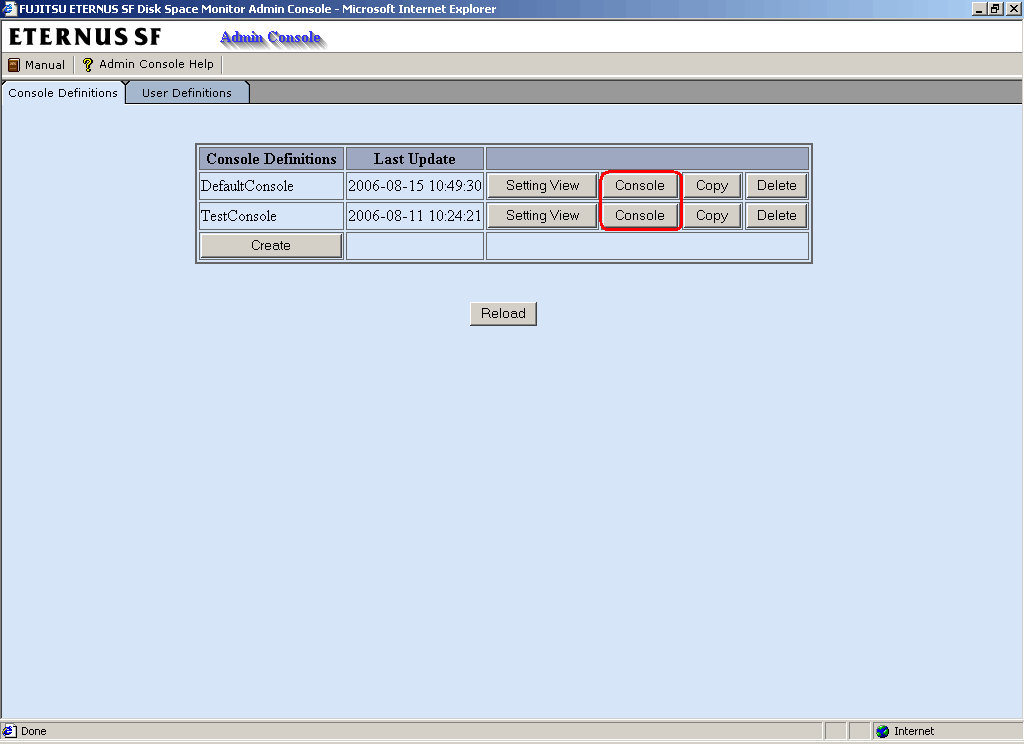

The Console can also be started by clicking the Console button from the Console Definitions tab.

To prevent the browser menu bar and address bar from being displayed, the initial window opened by specifying the URL starts the Console in a separate window and then closes.

Note, however, that depending on the specifications of the browser used, the following message box may appear when the initial window closes.

If this message box appears, click the Yes button to close the unnecessary window.

• If the browser is equipped with a pop-up blocking function, the Console will not open in a separate window. The pop-up blocking function should be disabled in such cases.
• The Console uses JavaScript. If JavaScript is not enabled, the Console will not open in a separate window. JavaScript should be enabled in such cases.
• Do not use the pop-up context menu that is displayed when the right mouse button is clicked to perform operations on the Console window.
