This appendix describes preprocessing and postprocessing of backup and restoration.
Preprocessing and postprocessing of backup or restoration are started before and after backup or restoration when a backup or restore execution command is executed.
These processing are executed in processing required by AdvancedCopy Manager to back up or restore a transaction volume.
This chapter describes the content and setup of preprocessing and postprocessing.

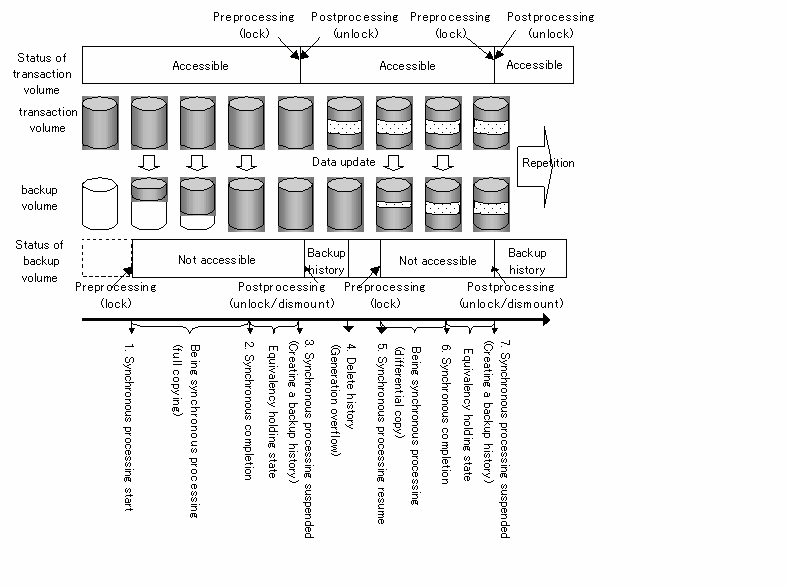

Backup on AdvancedCopy Manager must be performed basically while access to a transaction volume from other processes is inhibited.
As explained above, the transaction volume is usually locked in preprocessing. By specifying the Xflush option in the backup execution command or setting BufferFlushOnly to on in the transaction volume locking specification file for backups, you can flush the file system buffer without locking the volume.
In addition, the backup volume is locked in preprocessing. The backup volume is locked when the backup synchronous processing or snapshot sequence starts and is unlocked after backup postprocessing is complete.
|
Preprocessing for synchronous processing |
[Default operation]
|
|
Postprocessing for synchronous processing |
[Default operations]
|
|
Backup preprocessing |
[Default operations]
[When the Xflush option is specified or BufferFlushOnly is set to on]
|
|
Backup postprocessing |
[Default operations]
[When the Xflush option is specified or BufferFlushOnly is set to on]
|
To add user-specific processing to the preprocessing or postprocessing, add the processing in the backup preprocessing or postprocessing script.
These scripts are coded in the Jscript language and executed on a Windows Scripting Host (WSH).
When customizing a script, strictly observe the following rules regarding error code:
|
Error code |
Usage |
|---|---|
|
0-99 |
Unusable (reserved for AdvancedCopy Manager) |
|
100-255 |
Usable |
If post-processing was failed, execute the Resource match command(swstsrsemtch) because the consistency of resource information may be incomplete.

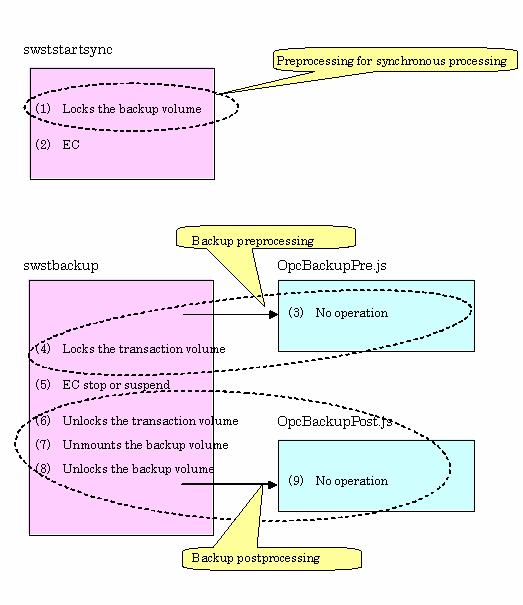

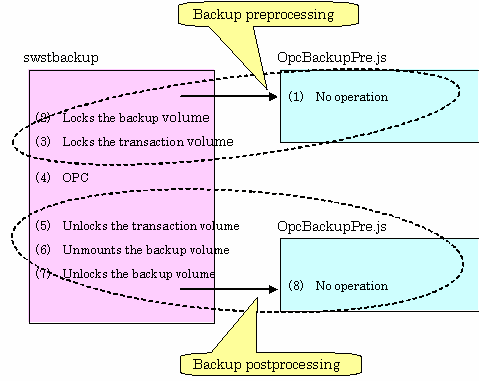

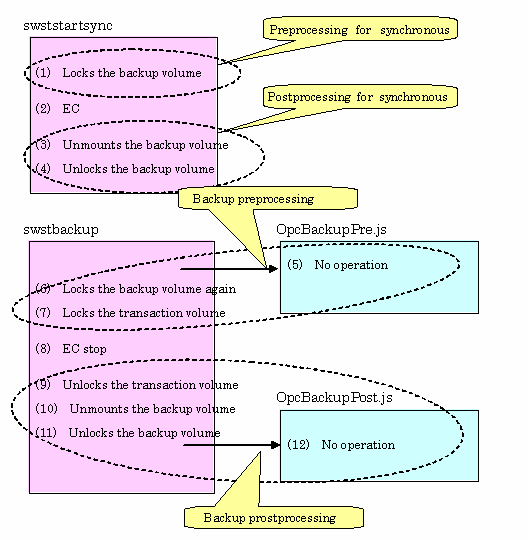

The figure below shows an image of the preprocessing and postprocessing operations:
The name of a script file for preprocessing of backup is as follows.
In the case of non-cluster operation
"environment-settings-directory\etc\backup\scripts\OpcBackupPre.js"
In the case of cluster operation
<Shared disk>:\etc\opt\swstorage\etc\backup\scripts\OpcBackupPre.js
1: // AdvancedCopy Manager for Windows 2: // All Rights Reserved, Copyright FUJITSU LIMITED, 2002-2006 3: // 4: // OpcBackupPre.js: Pre-Processing Script for swstbackup 5: // 6: // [Parameters] 7: // 1st argument: device name of transaction volume 8: // 2nd argument: device name of backup volume 9: // 10: // [Return Values] 11: // 0: The script ended normally. 12: // 2: The number of the arguments is incorrect. 13: // (2-3): not used, but must not be used because older versions use these values. 14: // 4: An error other than the above occurred. 15: 16: try {
17: // create global objects 18: var WshShell = WScript.CreateObject("WScript.Shell"); // create Shell object
19: var WshEnv = WshShell.Environment("PROCESS"); // create Environment object
20: var fsObj = WScript.CreateObject("Scripting.FileSystemObject"); // create FileSystemObject object
21: 22: // create SwstBackupPreProc object 23: var proc = new SwstBackupPreProc(); 24: 25: // there is nothing to do if the pre/post-processing is not customized 26: proc.doNothingForDriveLetter(); 27: 28: // if a backup volume is specified, .bd file is created. 29: if (proc.bvName.length != 0) {
30: proc.writePostFile(proc.bdFileName, proc.bvName); 31: } 32: SwstQuit(0); 33: } catch (e) {
34: SwstQuit(4); 35: } 36: 37: function SwstBackupPreProc() 38: {
39: // member variables 40: this.tvName = WScript.Arguments.length!=2?SwstQuit(1):WScript.Arguments.Item(0); // device name of transaction volume 41: this.postFileName = getDataPathName() + "\\" + getPutFileName(this.tvName) + ".pre"; // name of postprocessing file 42: this.bvName = WScript.Arguments.Item(1); // device name of transaction volume 43: this.bdFileName = getDataPathName() + "\\" + getPutFileName(this.tvName) + ".bd"; // name of postprocessing file 44: 45: // member functions 46: this.doNothingForDriveLetter = doNothingForDriveLetter; // self-explanatory 47: this.writePostFile = writePostFile; // self-explanatory 48: } 49: 50: function doNothingForDriveLetter() 51: {
52: this.writePostFile(this.postFileName, "none"); 53: } 54: 55: function writePostFile(postfile, postdata) 56: {
57: var overwrite = true; // means to overwrite a file if it exists. 58: var postFileStream = fsObj.CreateTextFile(postfile, overwrite); 59: postFileStream.Write(postdata); 60: postFileStream.Close(); 61: } 62: 63: function SwstQuit(exitStatus) 64: {
65: switch(exitStatus) {
66: case 0: 67: WScript.Quit(0); 68: case 1: 69: WScript.Echo("[Backup Preprocessing] The number of the arguments is incorrect.");
70: WScript.Quit(2); 71: default: 72: WScript.Echo("[Backup Preprocessing] The script exited abnormally.");
73: WScript.Quit(4); 74: } 75: } 76: 77: function getDataPathName() 78: {
79: return WshShell.RegRead(getSetupInfoKey() + "\\etcPathName") + "\\etc\\backup\\data\\DEFAULT"; 80: } 81: 82: function getBinPathName() 83: {
84: return WshShell.RegRead(getSetupInfoKey() + "\\PathName") + "\\bin"; 85: } 86: 87: function getSetupInfoKey() 88: {
89: var nodeName = WshEnv.Item("SWSTGNODE");
90: if( nodeName != "" ){
91: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion\\" + nodeName; 92: } 93: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion"; 94: } 95: 96: function getPutFileName(deviceName){
97: var fileName; 98: if( isSafeDISKName(deviceName) ){
99: var re = /(\S+)\/(\S+):(\S+)/; 100: fileName = deviceName.replace(re, "$1_$2_$3"); 101: }else{
102: fileName = deviceName; 103: } 104: return(fileName); 105: } 106: 107: function getGXDXPX(deviceName){
108: var gXdXpX; 109: if( isSafeDISKName(deviceName) ){
110: var re = /(\S+)\/(\S+):(\S+)/; 111: gXdXpX = deviceName.replace(re, "$3"); 112: }else{
113: gXdXpX = deviceName; 114: } 115: return(gXdXpX); 116: } 117: 118: function isSafeDISKName(deviceName){
119: var key = ":g"; 120: var s = deviceName.indexOf(key); 121: if ( s < 0 ) {
122: return (false); 123: } else {
124: return (true); 125: } 126: } |
The name of a script file for postprocessing of backup is as follows.
In the case of non-cluster operation
"environment-settings-directory \etc\scripts\OpcBackupPost.js"
In the case of cluster operation
<Shared disk>:\etc\opt\swstorage\etc\backup\scripts\OpcBackupPost.js
1: // AdvancedCopy Manager for Windows 2: // All Rights Reserved, Copyright FUJITSU LIMITED, 2002-2006 3: // 4: // OpcBackupPost.js: Post-Processing Script for swstbackup 5: // 6: // [Parameters] 7: // 1st argument: device name of transaction volume 8: // 9: // [Return Values] 10: // 0: The script ended normally. 11: // 2: The number of the arguments is incorrect. 12: // (1,3,5-8): not used, but must not be used because older versions use these values. 13: // 4: An error other than the above occurred. 14: 15: try {
16: // create global objects 17: var WshShell = WScript.CreateObject("WScript.Shell"); // create Shell object
18: var WshEnv = WshShell.Environment("PROCESS"); // create Environment object
19: var fsObj = WScript.CreateObject("Scripting.FileSystemObject"); // create FileSystemObject object
20: 21: // create SwstBackupPostProc object 22: var proc = new SwstBackupPostProc(); 23: 24: // do nothing if postprocessing file exists 25: if (fsObj.FileExists(proc.postFileName) == false) {
26: SwstQuit(0); 27: } 28: 29: // get postprocessing type 30: var postProcType = proc.getPostProcData(proc.postFileName); 31: switch(postProcType) {
32: case "none": 33: proc.doNothing(); 34: break; 35: } 36: 37: // do nothing if postprocessing file exists 38: if (fsObj.FileExists(proc.bdFileName) == true) {
39: var bvName = proc.getPostProcData(proc.bdFileName); 40: proc.doNothing(); 41: } 42: 43: // clear temporary files 44: proc.deletePostFile(proc.postFileName); 45: proc.deletePostFile(proc.bdFileName); 46: SwstQuit(0); 47: } catch (e) {
48: SwstQuit(6); 49: } 50: 51: function SwstBackupPostProc() 52: {
53: // member variables 54: this.tvName = WScript.Arguments.length!=1?SwstQuit(1):WScript.Arguments.Item(0); // device name of transaction volume 55: this.postFileName = getDataPathName() + "\\" + getPutFileName(this.tvName) + ".pre"; // name of postprocessing file 56: this.bdFileName = getDataPathName() + "\\" + getPutFileName(this.tvName) + ".bd"; // name of postprocessing file 57: 58: // member functions 59: this.getPostProcData = getPostProcData; // self-explanatory 60: this.doNothing = doNothing; // self-explanatory 61: this.deletePostFile = deletePostFile; // self-explanatory 62: } 63: 64: function getPostProcData(postfile) 65: {
66: var iomode = 1; // means read-only mode 67: var create = false; // means not to create a file 68: var postFileStream = fsObj.OpenTextFile(postfile, iomode, create); 69: var postData = postFileStream.ReadAll(); 70: postFileStream.Close(); 71: return postData; 72: } 73: 74: function doNothing() 75: {
76: // do nothing 77: } 78: 79: function deletePostFile(postfile) 80: {
81: if (fsObj.FileExists(postfile) == true) {
82: fsObj.DeleteFile(postfile); 83: } 84: } 85: 86: function SwstQuit(exitStatus) 87: {
88: switch(exitStatus) {
89: case 0: 90: WScript.Quit(0); 91: case 1: 92: WScript.Echo("[Backup Postprocessing] The number of the arguments is incorrect.");
93: WScript.Quit(2); 94: default: 95: WScript.Echo("[Backup Postprocessing] The script exited abnormally.");
96: WScript.Quit(4); 97: } 98: } 99: 100: function getDataPathName() 101: {
102: return WshShell.RegRead(getSetupInfoKey() + "\\etcPathName") + "\\etc\\backup\\data\\DEFAULT"; 103: } 104: 105: function getBinPathName() 106: {
107: return WshShell.RegRead(getSetupInfoKey() + "\\PathName") + "\\bin"; 108: } 109: 110: function getSetupInfoKey() 111: {
112: var nodeName = WshEnv.Item("SWSTGNODE");
113: if( nodeName != "" ){
114: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion\\" + nodeName; 115: } 116: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion"; 117: } 118: 119: function getPutFileName(deviceName){
120: var fileName; 121: if( isSafeDISKName(deviceName) ){
122: var re = /(\S+)\/(\S+):(\S+)/; 123: fileName = deviceName.replace(re, "$1_$2_$3"); 124: }else{
125: fileName = deviceName; 126: } 127: return(fileName); 128: } 129: 130: function getGXDXPX(deviceName){
131: var gXdXpX; 132: if( isSafeDISKName(deviceName) ){
133: var re = /(\S+)\/(\S+):(\S+)/; 134: gXdXpX = deviceName.replace(re, "$3"); 135: }else{
136: gXdXpX = deviceName; 137: } 138: return(gXdXpX); 139: } 140: 141: function isSafeDISKName(deviceName){
142: var key = ":g"; 143: var s = deviceName.indexOf(key); 144: if ( s < 0 ) {
145: return (false); 146: } else {
147: return (true); 148: } 149: } |
The transaction volume is locked/unlocked, and the buffer is flushed by the command, not by the script. Therefore, the backup preprocessing script and backup postprocessing script are executed, respectively, immediately before and after the transaction volume is locked/unlocked and the buffer is flushed. The backup preprocessing and postprocessing scripts essentially do not perform any processing.
In the preprocessing for synchronous processing and the backup preprocessing, to avoid a temporary access contention with other applications, locking is retried if it cannot complete its operation. If the number of times the command is executed reaches the specified retry count, locking ends abnormally. If an abnormal end occurs, a process that is using the transaction volume or backup volume remains. Stop all applications and services involved or take other appropriate measures so that the volume cannot be used by another process. Although the retry count can be changed by creating volume locking specification files and re-setting the count (for details on the files, refer Transaction volume locking specification file for backups and Backup volume locking specification file for backups), the files do not need to be created if appropriate measures have been taken to prevent other processes from using the target volumes during backup processing execution.
For a synchronous-type backup in a cluster system operation, to prevent the cluster system from being monitored, the backup volume is locked only while the backup synchronous processing start command is running and the backup execution command is running (refer to the figure above). That is, the backup volume remains unlocked from when the backup synchronous processing start command is executed to when the backup execution command is executed. This may cause a message described in "About the message outputted to an event viewer" in "General notes", in this manual to be output to the event log, but since there is no problem, the message can be ignored.
If locking fails in the transaction volume backup preprocessing, locking is retried to avoid a temporary access conflict with other applications. The standard retry operations are as follows:
Locking is retried one second after locking fails.
If locking is not successful after 20 retries (a total of 21 times including the first locking attempt), then the processing is stopped and the command ends abnormally.
The maximum number of retries (default value = 20 times) and retry interval (default value = 1 second) can be changed by creating a setting file called the transaction volume locking specification file for backups. In this setting file, the following instructions can be specified for the transaction volume backup preprocessing:
Making invalid all file handles in the volume before locking is retried (forcible locking function)
Flushing the file system buffer instead of locking/unlocking during the backup preprocessing (function equivalent to the Xflush option)
The resource backup command (swstresback) cannot back up the transaction volume locking specification file for backups. In operations that uses the transaction volume locking specification file for backups, the copy command, etc., must be executed to back up the transaction volume locking specification file for backups.
Using a name such as the one below to create a transaction volume locking specification file for backups.
|
File name |
[In the case of non-cluster operation] "environment-settings-directory\etc\backup\data\BTRANLOCK.INI [In the case of cluster operation] <Shared disk>:\etc\opt\swstorage\etc\backup\data\BTRANLOCK.INI |
Examples of settings in the transaction volume locking specification file for backup are listed below.
|
[g1d1p1] BufferFlushOnly=off LockForceMode=on LockRetryNumber=10 LockRetryInterval=10 [g1d1p2] BufferFlushOnly=on [ANY] BufferFlushOnly=off LockForceMode=off LockRetryNumber=20 LockRetryInterval=100 |
An explanation of how to create a transaction volume locking specification file for backups is given below.
Create a section for the volume whose locking operation is to be changed and code parameters (in the above example, the g1d1p1 and g1d1p2 sections are created). The four parameters listed in the table below may be changed. All of these four parameters need not be coded. Code only the parameters that you want to change. The default value is used for the parameters that are not coded.
To change the default locking operation, create a section called "ANY" and code parameters. This enables the locking operation to be changed for all volumes except the volumes explicitly coded in the transaction volume locking specification file for backups (in the above example, the locking of all volumes except g1d1p1 and g1d1p2 depends on the value in the "ANY" section).
|
Key |
Explanation |
|---|---|
|
BufferFlushOnly |
Specifies flushing the file system buffer of the transaction volume instead of locking the transaction volume: off (default value) = buffer is not flushed (locking) If the Xflush option is specified in swstbackup or swstbackup_exchange and BufferFlushOnly=off, then the Xflush option has priority. If BufferFlushOnly is set to on, all other parameters (LockForceMode, LockRetryNumber, and LockRetryInterval) become invalid. Before on is set for this parameter, all write processing on the transaction volume must be stopped. (If a replica is created without the write processing stopped, then the transaction volume data is not guaranteed.) If on is specified for NoPrePost, then this parameter becomes invalid. |
|
LockForceMode |
If locking of the transaction volume fails, locking is retried. This parameter specifies that the volume be dismounted before locking is retried. off (default value) = no dismounting before locking is retried When the volume is dismounted, all handles opened for the volume become invalid. * If the volume is set in the used state immediately after it is dismounted, then locking may be impossible. If on is specified for BufferFlushOnly or NoPrePost, then this parameter becomes invalid. |
|
LockRetryNumber |
If locking of the transaction volume fails, locking is retried. This parameter specifies the retry count. A numeric value ranging from 1 to 10000 can be specified. The default value is 20 (times). If the transaction volume cannot be locked after locking is retried for the specified retry count, then the processing is suspended and the command ends abnormally. If on is specified for BufferFlushOnly or NoPrePost, then this parameter becomes invalid. |
|
LockRetryInterval |
If locking of the transaction volume fails, locking is retried. This parameter specifies the retry interval (in milliseconds). A numeric value ranging from 1 to 600000 (10 minutes) can be specified. The default value is 1000 (1 second). If on is specified for BufferFlushOnly or NoPrePost, then this parameter becomes invalid. |
|
NoPrePost |
Specifies that the backup preprocessing and postprocessing are not to be performed. off (default) = The backup preprocessing and postprocessing are performed. Setting NoPrePost to on disables all the other parameters (BufferFlushOnly, LockForceMode, LockRetryNumber, and LockRetryInterval). |
If locking fails in the backup volume backup preprocessing, locking is retried to avoid a temporary access conflict with other applications. The standard retry operations are as follows:
Locking is retried one second after locking fails.
If locking is not successful after 20 retries (a total of 21 times including the first locking attempt), then the processing is stopped and the command ends abnormally.
The maximum number of retries (default value = 20 times) and retry interval (default value = 1 second) can be changed by creating a setting file called the backup volume locking specification file for backups. In this setting file, the following instructions can be specified for the backup volume backup preprocessing:
Making invalid all file handles in the volume before locking is retried (forcible locking function)
The resource backup command (swstresback) cannot back up the backup volume locking specification file for backups. In operations that uses the backup volume locking specification file for backups, the copy command, etc., must be executed to back up the backup volume locking specification file for backups.
Using a name such as the one below to create a backup volume locking specification file for backups.
|
File name |
[For a non-cluster operation] environment-setting-directory\etc\backup\data\BBACKLOCK.INI [For a cluster operation] <shared-disk>:\etc\opt\swstorage\etc\backup\data\BBACKLOCK.INI |
Examples of settings in the backup volume locking specification file for backup are listed below.
|
[g1d1p1] LockForceMode=on LockRetryNumber=10 LockRetryInterval=10 [ANY] LockForceMode=off LockRetryNumber=20 LockRetryInterval=100 |
An explanation of how to create a backup volume locking specification file for backups is given below.
Create a section for the volume whose locking operation is to be changed and code parameters (in the above example, the g1d1p1 section is created). The three parameters listed in the table below may be changed. All of these three parameters need not be coded. Code only the parameters that you want to change. The default value is used for the parameters that are not coded.
To change the default locking operation, create a section called "ANY" and code parameters. This enables the locking operation to be changed for all volumes except the volumes explicitly coded in the backup volume locking specification file for backups (in the above example, the locking of all volumes except g1d1p1 depends on the value in the "ANY" section).
|
Key |
Explanation |
|---|---|
|
LockForceMode |
If locking of the backup volume fails, locking is retried. This parameter specifies that the volume be dismounted before locking is retried. off (default value) = no dismounting before locking is retried When the volume is dismounted, all handles opened for the volume become invalid. * If the volume is set in the used state immediately after it is dismounted, then locking may be impossible. |
|
LockRetryNumber |
If locking of the backup volume fails, locking is retried. This parameter specifies the retry count. A numeric value ranging from 1 to 10000 can be specified. The default value is 20 (times). If the backup volume cannot be locked after locking is retried for the specified retry count, then the processing is suspended and the command ends abnormally. |
|
LockRetryInterval |
If locking of the backup volume fails, locking is retried. This parameter specifies the retry interval (in milliseconds). A numeric value ranging from 1 to 600000 (10 minutes) can be specified. The default value is 1000 (1 second). |

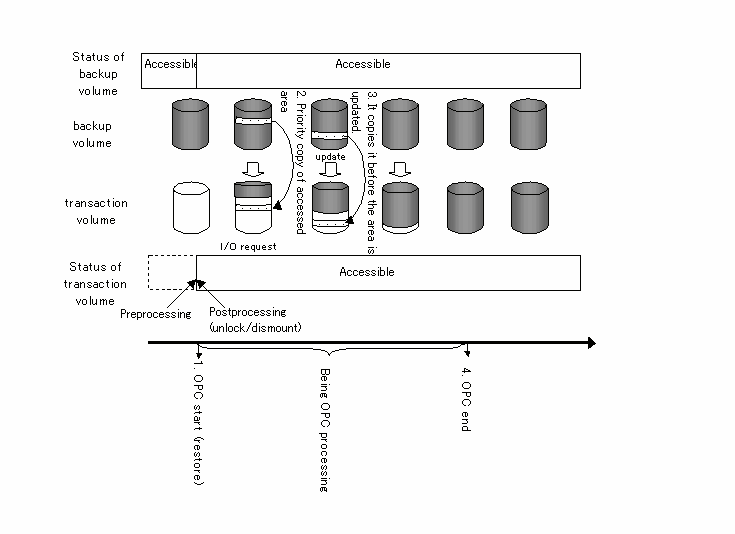

Restoration with AdvancedCopy Manager requires backup-restored volumes to be inaccessible from other processes.
Therefore, in normal restoration preprocessing, the following processing is executed:
|
Preprocessing |
|
The backup-restored volume is locked. |
The postprocessing determines what needs to be done according to what was done in the preprocessing.
|
Postprocessing |
|
The backup-restored volume is dismounted. |
In addition, if extra preprocessing or postprocessing is needed, add the required operation in the preprocessing script or postprocessing script.
These scripts are coded in the Jscript language and executed on a Windows Scripting Host (WSH).
When customizing a script, strictly observe the following rules regarding error code:
|
Error code |
Usage |
|---|---|
|
0-99 |
Unusable (reserved for AdvancedCopy Manager) |
|
100-255 |
Usable |
If the postprocessing fails, the resource information may have inconsistencies. Execute swstsrsemtch described in Section, "Resource match command (swstsrsemtch)", in the operation guide.

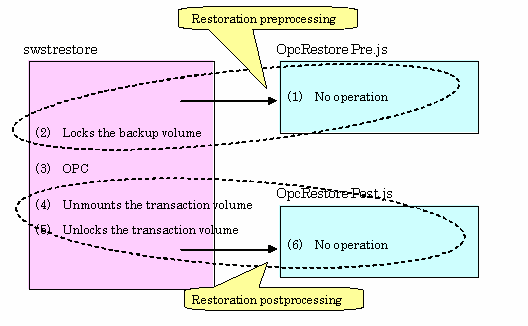

The figure below shows an image of the preprocessing and postprocessing operations:
The name of a script file for preprocessing of restoration is as follows.
In the case of non-cluster operation
"environment-settings-directory\etc\backup\scripts\OpcRestorePre.js"
In the case of cluster operation
<Shared disk>:\etc\opt\swstorage\etc\backup\scripts\OpcRestorePre.js
1: // AdvancedCopy Manager for Windows 2: // All Rights Reserved, Copyright FUJITSU LIMITED, 2002-2005 3: // 4: // OpcRestorePre.js: Pre-Processing Script for swstrestore 5: // 6: // [Parameters] 7: // 1st argument: device name of transaction volume 8: // 9: // [Return Values] 10: // 0: The script ended normally. 11: // 2: The number of the arguments is incorrect. 12: // 3: not used, but must not be used because older versions use these values. 13: // 4: An error other than the above occurred. 14: 15: try {
16: // create global objects 17: var WshShell = WScript.CreateObject("WScript.Shell"); // create Shell object
18: var WshEnv = WshShell.Environment("PROCESS"); // create Environment object
19: var fsObj = WScript.CreateObject("Scripting.FileSystemObject"); // create FileSystemObject object
20: 21: // create SwstRestorePreProc object 22: var proc = new SwstRestorePreProc(); 23: 24: // there is nothing to do if the pre/post-processing is not customized 25: proc.doNothingForDriveLetter(); 26: 27: SwstQuit(0); 28: } catch (e) {
29: SwstQuit(4); 30: } 31: 32: function SwstRestorePreProc() 33: {
34: // member variables 35: this.tvName = WScript.Arguments.length!=1?SwstQuit(1):WScript.Arguments.Item(0); // device name of transaction volume 36: this.postFileName = getDataPathName() + "\\" + getPutFileName(this.tvName) + ".pre"; // name of postprocessing file 37: 38: // member functions 39: this.doNothingForDriveLetter = doNothingForDriveLetter; // self-explanatory 40: this.writePostFile = writePostFile; // self-explanatory 41: } 42: 43: function doNothingForDriveLetter() 44: {
45: this.writePostFile("none");
46: } 47: 48: function writePostFile(type) 49: {
50: var overwrite = true; // means to overwrite a file if it exists. 51: var postFileStream = fsObj.CreateTextFile(this.postFileName, overwrite); 52: postFileStream.Write(type); 53: postFileStream.Close(); 54: } 55: 56: function SwstQuit(exitStatus) 57: {
58: switch(exitStatus) {
59: case 0: 60: WScript.Quit(0); 61: case 1: 62: WScript.Echo("[Restore Preprocessing] The number of the arguments is incorrect.");
63: WScript.Quit(2); 64: default: 65: WScript.Echo("[Restore Preprocessing] The script exited abnormally.");
66: WScript.Quit(4); 67: } 68: } 69: 70: function getDataPathName() 71: {
72: return WshShell.RegRead(getSetupInfoKey() + "\\etcPathName") + "\\etc\\backup\\data\\DEFAULT"; 73: } 74: 75: function getBinPathName() 76: {
77: return WshShell.RegRead(getSetupInfoKey() + "\\PathName") + "\\bin"; 78: } 79: 80: function getSetupInfoKey() 81: {
82: var nodeName = WshEnv.Item("SWSTGNODE");
83: if( nodeName != "" ){
84: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion\\" + nodeName; 85: } 86: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion"; 87: } 88: 89: function getPutFileName(deviceName){
90: var fileName; 91: if( isSafeDISKName(deviceName) ){
92: var re = /(\S+)\/(\S+):(\S+)/; 93: fileName = deviceName.replace(re, "$1_$2_$3"); 94: }else{
95: fileName = deviceName; 96: } 97: return(fileName); 98: } 99: 100: function getGXDXPX(deviceName){
101: var gXdXpX; 102: if( isSafeDISKName(deviceName) ){
103: var re = /(\S+)\/(\S+):(\S+)/; 104: gXdXpX = deviceName.replace(re, "$3"); 105: }else{
106: gXdXpX = deviceName; 107: } 108: return(gXdXpX); 109: } 110: 111: function isSafeDISKName(deviceName){
112: var key = ":g"; 113: var s = deviceName.indexOf(key); 114: if ( s < 0 ) {
115: return (false); 116: } else {
117: return (true); 118: } 119: } |
The name of a script file for postprocessing of restoration is as follows.
In the case of non-cluster operation
"environment-settings-directory\etc\backup\scripts\OpcRestorePost.js"
In the case of cluster operation
<Shared disk>:\etc\opt\swstorage\etc\backup\scripts\OpcRestorePost.js
1: // AdvancedCopy Manager for Windows 2: // All Rights Reserved, Copyright FUJITSU LIMITED, 2002-2006 3: // 4: // OpcRestorePost.js: Post-Processing Script for swstrestore 5: // 6: // [Parameters] 7: // 1st argument: device name of transaction volume 8: // 9: // [Return Values] 10: // 0: The script ended normally. 11: // 2: The number of the arguments is incorrect. 12: // (3,5): not used, but must not be used because older versions use these values. 13: // 4: An error other than the above occurred. 14: 15: try {
16: // create global objects 17: var WshShell = WScript.CreateObject("WScript.Shell"); // create Shell object
18: var WshEnv = WshShell.Environment("PROCESS"); // create Environment object
19: var fsObj = WScript.CreateObject("Scripting.FileSystemObject"); // create FileSystemObject object
20: 21: // create SwstRestorePostProc object 22: var proc = new SwstRestorePostProc(); 23: 24: // do nothing if postprocessing file exists 25: if (fsObj.FileExists(proc.postFileName) == false) {
26: proc.doNothing(); 27: } 28: // get postprocessing type 29: else {
30: var postProcType = proc.getPostProcType(); 31: switch(postProcType) {
32: case "none": 33: proc.doNothing(); 34: break; 35: } 36: } 37: 38: // clear temporary file 39: proc.deletePostFile(); 40: SwstQuit(0); 41: } catch (e) {
42: SwstQuit(6); 43: } 44: 45: function SwstRestorePostProc() 46: {
47: // member variables 48: this.tvName = WScript.Arguments.length!=1?SwstQuit(1):WScript.Arguments.Item(0); // device name of transaction volume 49: this.postFileName = getDataPathName() + "\\" + getPutFileName(this.tvName) + ".pre"; // name of postprocessing file 50: 51: // member functions 52: this.getPostProcType = getPostProcType; // self-explanatory 53: this.doNothing = doNothing; // self-explanatory 54: this.deletePostFile = deletePostFile; // self-explanatory 55: } 56: 57: function getPostProcType() 58: {
59: var iomode = 1; // means read-only mode 60: var create = false; // means not to create a file 61: var postFileStream = fsObj.OpenTextFile(this.postFileName, iomode, create); 62: var postProc = postFileStream.ReadAll(); 63: postFileStream.Close(); 64: return postProc; 65: } 66: 67: function doNothing() 68: {
69: // do nothing 70: } 71: 72: function deletePostFile() 73: {
74: if (fsObj.FileExists(this.postFileName) == true) {
75: fsObj.DeleteFile(this.postFileName); 76: } 77: } 78: 79: function SwstQuit(exitStatus) 80: {
81: switch(exitStatus) {
82: case 0: 83: WScript.Quit(0); 84: case 1: 85: WScript.Echo("[Restore Postprocessing] The number of the arguments is incorrect.");
86: WScript.Quit(2); 87: default: 88: WScript.Echo("[Restore Postprocessing] The script exited abnormally.");
89: WScript.Quit(4); 90: } 91: } 92: 93: function getDataPathName() 94: {
95: return WshShell.RegRead(getSetupInfoKey() + "\\etcPathName") + "\\etc\\backup\\data\\DEFAULT"; 96: } 97: 98: function getBinPathName() 99: {
100: return WshShell.RegRead(getSetupInfoKey() + "\\PathName") + "\\bin"; 101: } 102: 103: function getSetupInfoKey() 104: {
105: var nodeName = WshEnv.Item("SWSTGNODE");
106: if( nodeName != "" ){
107: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion\\" + nodeName; 108: } 109: return "HKEY_LOCAL_MACHINE\\SOFTWARE\\Fujitsu\\AdvancedCopy Manager\\CurrentVersion"; 110: } 111: 112: function getPutFileName(deviceName){
113: var fileName; 114: if( isSafeDISKName(deviceName) ){
115: var re = /(\S+)\/(\S+):(\S+)/; 116: fileName = deviceName.replace(re, "$1_$2_$3"); 117: }else{
118: fileName = deviceName; 119: } 120: return(fileName); 121: } 122: 123: function getGXDXPX(deviceName){
124: var gXdXpX; 125: if( isSafeDISKName(deviceName) ){
126: var re = /(\S+)\/(\S+):(\S+)/; 127: gXdXpX = deviceName.replace(re, "$3"); 128: }else{
129: gXdXpX = deviceName; 130: } 131: return(gXdXpX); 132: } 133: 134: function isSafeDISKName(deviceName){
135: var key = ":g"; 136: var s = deviceName.indexOf(key); 137: if ( s < 0 ) {
138: return (false); 139: } else {
140: return (true); 141: } 142: } |
The backup volume is locked/unlocked not by the script but by the command. Therefore, the restoration preprocessing script and restoration postprocessing script are respectively executed immediately before and after the backup volume is locked/unlocked.
In the restoration preprocessing, to avoid a temporary access contention with other applications, locking is retried if it cannot complete its operation. If the number of times the command is executed reaches the specified retry count, locking ends abnormally. If an abnormal end occurs, a process that is using the backup-restored volume remains. Stop all applications and services involved or take other appropriate measures so that the volume cannot be used by another process. Although the retry count can be changed by creating a volume locking specification file and re-setting the count (for details on the file, refer to Backup-restored volume locking specification file), the files do not need to be created if appropriate measures have been taken to prevent other processes from using the target volume during restoration processing execution.
If locking fails in the backup-restored volume restore preprocessing, locking is retried to avoid a temporary access conflict with other applications. The standard retry operations are as follows:
Locking is retried one second after locking fails.
If locking is not successful after 20 retries (a total of 21 times including the first locking attempt), then the processing is stopped and the command ends abnormally.
The maximum number of retries (default value = 20 times) and retry interval (default value = 1 second) can be changed by creating a setting file called the backup-restored volume locking specification file for backups. In this setting file, the following instructions can be specified for the backup-restored volume backup preprocessing:
Making invalid all file handles in the volume before locking is retried (forcible locking function)
The resource backup command (swstresback) cannot back up the backup-restored volume locking specification file for backups. In operations that uses the backup-restored volume locking specification file for backups, the copy command, etc., must be executed to back up the backup-restored volume locking specification file for backups.
Using a name such as the one below to create a backup-restored volume locking specification file for backups.
|
File name |
[For a non-cluster operation] environment-setting-directory\etc\backup\data\RDSTLOCK.INI [For a cluster operation] <shared-disk>:\etc\opt\swstorage\etc\backup\data\RDSTLOCK.INI |
Examples of settings in the backup-restored volume locking specification file for backup are listed below.
|
[g1d1p1] LockForceMode=on LockRetryNumber=10 LockRetryInterval=10 [ANY] LockForceMode=off LockRetryNumber=20 LockRetryInterval=100 |
An explanation of how to create a backup-restored volume locking specification file for restores is given below.
Create a section for the volume whose locking operation is to be changed and code parameters (in the above example, the g1d1p1 section is created). The three parameters listed in the table below may be changed. All of these three parameters need not be coded. Code only the parameters that you want to change. The default value is used for the parameters that are not coded.
To change the default locking operation, create a section called "ANY" and code parameters. This enables the locking operation to be changed for all volumes except the volumes explicitly coded in the backup volume locking specification file for backups (in the above example, the locking of all volumes except g1d1p1 depends on the value in the "ANY" section).
|
Key |
Explanation |
|---|---|
|
LockForceMode |
If locking of the backup-restored volume fails, locking is retried. This parameter specifies that the volume be dismounted before locking is retried. off (default value) = no dismounting before locking is retried When the volume is dismounted, all handles opened for the volume become invalid. * If the volume is set in the used state immediately after it is dismounted, then locking may be impossible. |
|
LockRetryNumber |
If locking of the backup-restored volume fails, locking is retried. This parameter specifies the retry count. A numeric value ranging from 1 to 10000 can be specified. The default value is 20 (times). If the backup volume cannot be locked after locking is retried for the specified retry count, then the processing is suspended and the command ends abnormally. |
|
LockRetryInterval |
If locking of the backup-restored volume fails, locking is retried. This parameter specifies the retry interval (in milliseconds). A numeric value ranging from 1 to 600000 (10 minutes) can be specified. The default value is 1000 (1 second). |
|
Contents
Index
|
