Machine Administration Guide 2.6

3.2.7.6 Collecting system information

This section describes how to operate the Collecting System Information function.

If a main unit error occurs, Collecting System Information outputs the following information to a file:

• Information relating to the hardware and software configurations, environment setting, logs, and operation statuses
• Information such as command execution results



  The CE uses the file in which system information was collected.

Displaying the Collecting System Information menu

Operation

1. From the Log Data menu, select [Collecting System Information].

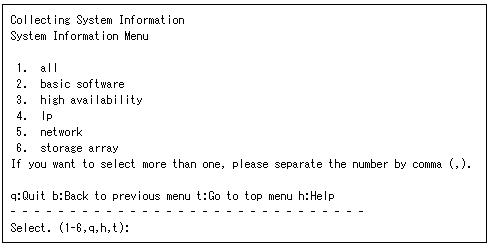

   The Collecting System Information menu opens.



Collecting System Information

Operation

1. From the Collecting System Information menu, select the system information to be collected.
2. Enter the following information in the menu:
   • Collection Destination

     Specify the name to the collection destination file with the full path.

     The file is created in tar format and is compressed with the "compress" command.
