Machine Administration Guide 2.6

3.2.7.5 Saving the log data

This section describes how to operate the Saving the Log Data function.

Saving the Log Data saves log data of various types. The following types of log data can be saved:

• All
• Message Log
• Machine Administration Monitoring Log
• SCF Error Log
• Power Log



The CE uses the file in which the log data was saved, when hardware is faulty.

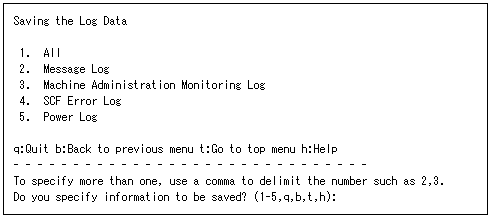

Displaying the Saving the Log Data menu

Operation

1. From the Log Data menu, select [Saving the Log Data].

   The Saving the Log Data menu opens.





   The menu items to be displayed depend on the main unit model.

   Moreover, there are cases where displayed menu items may not be available for use.



   See Section 3.2.2, "Main Unit Models and Available Menus."

Save Log Data to a File

Operation

1. From the Save Log Data to a File menu, select the log data to be saved.
2. Enter the following information in the menu:
   • Save destination

     Specify the save destination file name with the full path.

     The file is created in tar format and is compressed with the "compress" command.
