Machine Administration Guide 2.6

3.2.6.1 Management of Hardware Error Event

This section describes how to operate the Management of Hardware Error Event function.

Displaying the Current abnormalities menu

Operation

1. From the Hardware Monitoring Information menu, select [Management of Hardware Error Event].

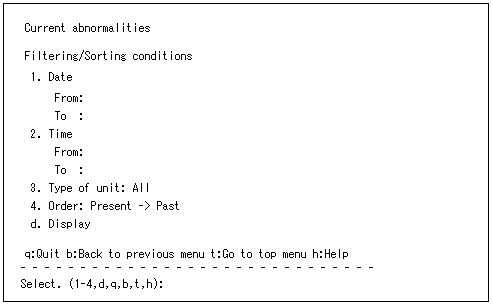

   The Current abnormalities menu opens.



Retrieving hardware error events

Management of Hardware Error Event retrieves information indicating the part in the main unit where the error occurred and the error details.

Operation

1. Specify the following items according to the menu to retrieve hardware error information:
   • Specify the display start date and display end date in Date.

     Error information generated in the specified range appears.

     If From is omitted, error information is displayed starting from the oldest information.

     If To is omitted, error information is displayed up to the latest information.

     If both From and To are omitted, all of the error information is displayed.

   • Enter the display start time and display end time in Time.

     The SCF error log in the specified time range appears.

     If From is omitted, the starting time is 00:00.

     If To is omitted, the ending time is 23:59.

     <Example>

     If 20:00 is specified in From and 08:00 is specified in To, the information logged from 20:00 to 08:00 is displayed in the range from the beginning to the end of the log file.

     If 0501 to 0831 is specified for Date and 1700 to 0900 is specified for Time, the information logged from 17:00 of a day to 09:00 of the next day appears in the range of May 1 to August 31.

   • Specify the component type in Type of unit.

     The error information for the specified component type appears.



     To see the list of the faulty parts, select "Faulty Parts."

   • Specify the display order.

     Select whether information is displayed in reverse chronological order or chronological order.

     The default is "Present -> Past."

2. Enter "d (display)".

   Error information matching the search conditions appears.

   The following information appears as error information:

   • Date

     Displays a date (year, month, and day) and time when the error occurred in the part.

   • Unit

     Displays the part name and identification number.

3. Enter the number of the detailed information from the error information list.

   The detailed faulty part information appears.

   The detailed faulty part information includes:

   • Location

     Displays the location of the part in which the error occurred.

   • Status

     Displays the part status.

   • Date

     Displays the date and time when the error occurred in the part.

   • Reason

     Displays the cause of the error that occurred in the part.

   The following operations are also possible:

   • Hot swap

     Performs hot swapping of the part in which the error occurred.

   • Reset the status

     Resets the status of the faulty part and deletes the status symbol displayed in "Hardware Configuration Display."

     The following message appears when the status is reset for a part in which the error status remains in effect.

     FJSVmadm:X:XXXX:Firm:Notification (Parts Status Reset Failure) occurred at MMM DD hh:mm:ss TZ
