Machine Administration Guide 2.6

3.1.9.1 Displaying power control relationships

This section describes how to display information related to automatic power control.

Operation

1. From the GUI menu, select [Automatic Power Control].

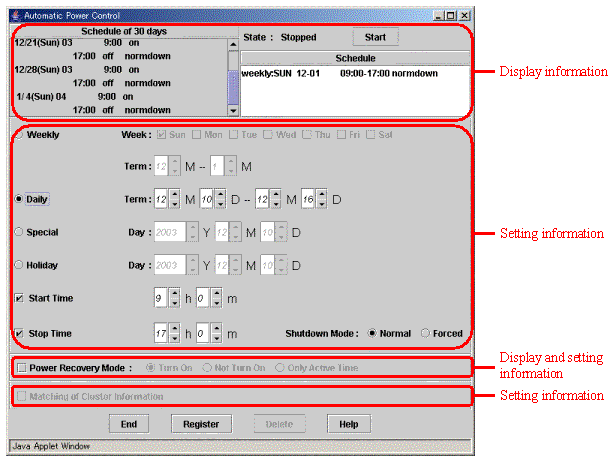

   The [Automatic Power Control] screen appears.



   The [Automatic Power Control] screen displays the following information:

   • State field

     Operation status of automatic power control

     Active: Automatic power control is in progress.

     Stopped: Automatic power control stops.

   • Schedule of 30 days field

     Automatic power control schedule for 30 days from the current date and time

     Schedule setting and deletion are reflected.

   • Schedule field

     Displays schedule information for automatic power control which was set.

     Schedule setting and deletion are reflected.

   • Power Recovery Mode

     A selected host displays the power recovery mode currently set.

     Power Recovery Mode	Meaning
     Power On	If a power failure occurs during main unit operation and the power is turned off, it is automatically turned on again when the power is subsequently restored.
     Do Not Power On	If a power failure occurs during main unit operation and the power is turned off, it is not turned on again when the power is subsequently restored.
     Power On When Active	If a power failure occurs during main unit operation and the power is turned off, it is automatically turned on again during an operation period when the power has been subsequently restored.
