Appendix B Line Monitoring Daemon | > B.1 Line Monitoring Daemon |
The switching time of a transmission path in the online NIC is represented by "monitoring interval (sec) x monitoring count (count) x the number of transmission paths (line)." The monitoring interval can be set in the range of 2 to 300 seconds and the monitoring count can be set in the range of 1 to 300 times. By default, they are 5 seconds and 2 times respectively.
In addition, immediately after activation of a MPNET interface, the transmission path is not monitored until the monitoring wait time (sec) passed to wait for the Ethernet link to be established. Possible to set the time to wait for link up in a range of 1 to 300 seconds and a default value is 0 second.
The fault detection time in standby NICs is represented by "standby monitoring interval (sec)," and a default value is 300 seconds.

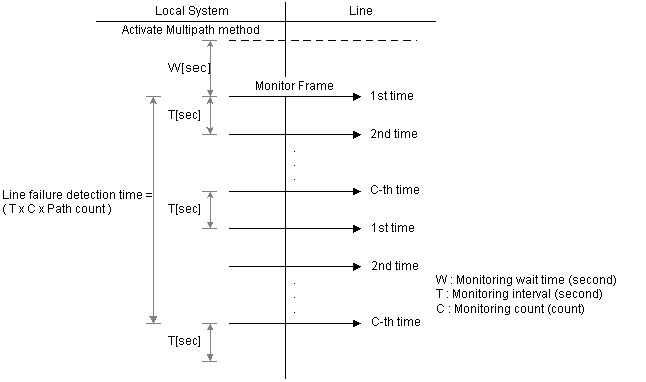

[Figure B.3 Fault Detection Time]
