Chapter 8 Dynamic Reconfiguration Function> 8.1 Dynamic Reconfiguration function

8.1.2 Environmental Construction

When a LAN configuration that uses the Multipath function is constructed on a GP7000F model 1000/2000 or PRIMEPOWER 800/900/1000/1500/2000/2500, a configuration like "Figure 8.1 recommendation LAN configuration" is recommended.

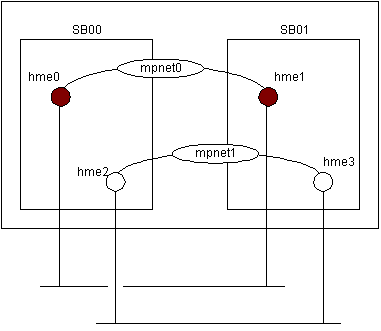

[Figure 8.1 recommendation LAN configuration]

The DR function is done to the unit of System Board (SB) of the GP7000F model 1000/2000 and PRIMEPOWER 800/900/1000/1500/2000/2500.
When disconnecting by the DR command, it is possible to make communication continue by having a redundant communication path between System Boards, like recommended configuration.
