| Chapter 7 Administration on a Cluster System | > 7.1 The Correspondence Outline in a Cluster System |
Mutual standby mode can be created by defining two or more interfaces with the Multipath function and by configuring each resource as another application.
In normal operation, a local system communicates with the remote system using communication path on the online instance of each cluster service or each userApplication.
When abnormalities (panics, hangs, and transmission path failure) occur in the online node, the Multipath function switches the resource onto the standby node to take over the communication of the online node by reconnecting the path.

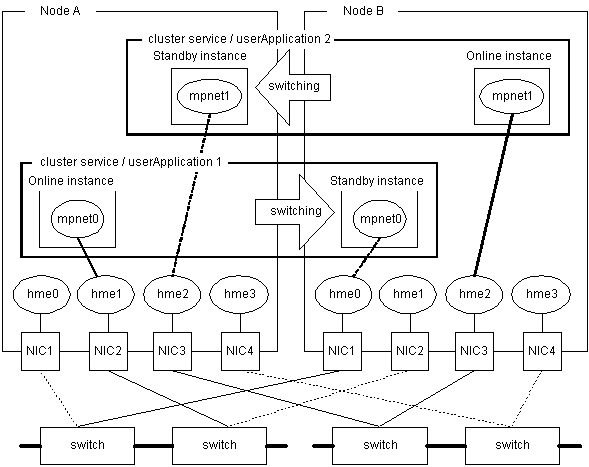

The Mutual standby configuration is shown in "Figure 7.3 Mutual standby mode Configuration."
[Figure 7.3 Mutual standby mode Configuration]
|
