Chapter 6 Command Reference | > 6.7 Display Command of the State of Transmission Path |
mpnetlinkwatch - display the state of transmission path
/opt/FJSVmpnet/bin/mpnetlinkwatch interface_name [communication_path_name]
This command displays the connection state (Link Up/Down) of the transmission path of the communication path of the specified interface or the specified communication path.
Please execute this command and be sure to check whether there is any cable omission, when the device is exchanged by the DR function.

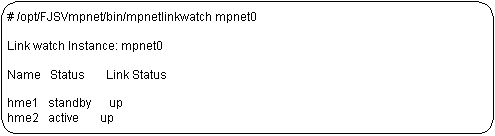

The following examples are output.
Information output from the above examples is explained in "Table 6.6 Output information of the mpnetlinkwatch command."
[Table 6.6 Output information of the mpnetlinkwatch command]
Information
Description
Link watch instance: mpnetX
The specified interface is displayed.
Name
The device name of the interface is displayed.
Status
The state of the device is displayed.
- active : enabled to communicate or under operation
- standby : ready for communication but in an idle state
- stop : stopped state
- fail : disabled for communication caused by a failure
- busy : The communication path is being processed.
- disconnected : The communication path has been disconnected by the DR function.Link Status
The cable connection state of the device is displayed.
- up : Link up state
- down : Link down state
This command can only be issued by the super-user.
When the FDDI card is used, this command is not supported.
