PRIMECLUSTER Global Disk Services Configuration and Administration Guide 4.1 (Linux)

5.5.5 Breaking a Proxy

This subsection describes the procedures for breaking the relationships between masters and proxies in GDS Snapshot installed systems.

1. Selecting a master for break

   Click an icon of a master object for break on the GDS Configuration Tree in the Main Screen.



2. Selecting a proxy for break

   Select [view]:[Details]:[Proxy Object] to view all the proxy objects related to the master selected on the GDS Configuration Tree, in the Object Information Field. In this field, click an icon of a proxy object for break.



3. Selecting the [Break] menu

   Select [Operation]:[Proxy Operation]:[Break] in the Main Screen.

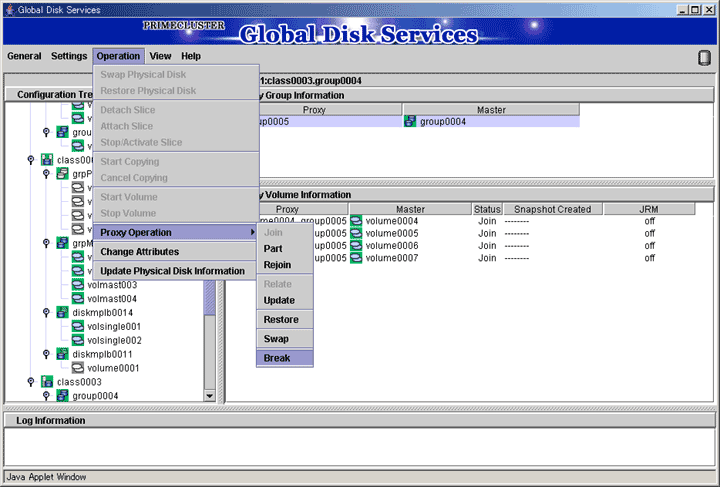

   [Figure: Break]






4. Confirming

   A confirmation dialog box appears asking you whether to break the proxy.

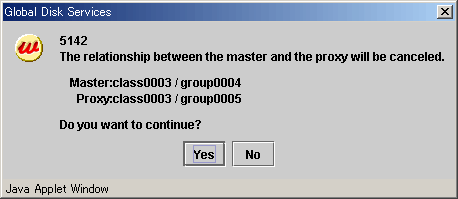

   [Figure: Confirming "Break"]



   To continue the process, click <Yes>. Clicking <No> cancels the break process.




5. Information message of the completion

   A message window appears informing you that the break process is complete.

   [Figure: Information Message of "Break" Completion]]



   Click <OK> to close the information message window.
