F.6 Flow of Operation

This section explains the flow of operations using the KVM Support Function.

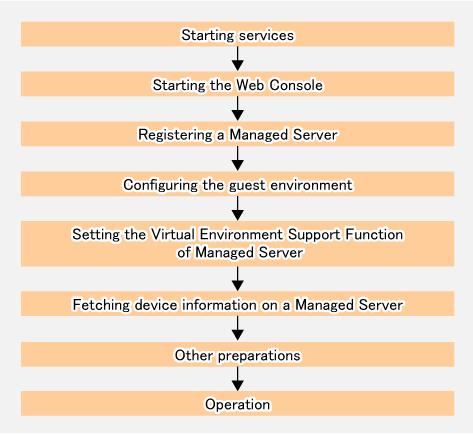

Figure F.7 Flow of Operations Using KVM Support Function

Above work is carried out for the following servers to be controlled and processed.

No.	Contents of Work	Object of Control	Server to Be Processed
1	"F.7.1 Starting Services"	Management Server All guests and hosts	Management Server All guests and hosts
2	"F.7.2 Starting Web Console"	PC	PC
3	"F.7.3 Registering Managed Server"	Web Console (when using the GUI) Management Server (when using the CLI)	All guests and hosts
4	"F.7.4 Configuring Guest Environment"	All guests	All guests
5	"F.7.5 Setting Virtual Environment Support Function of Managed Server"	All guests	All guests
6	"F.7.6 Fetching Device Information on Managed Server"	Web Console (when using the GUI) Management Server (when using the CLI)	All guests
7	"F.7.7 Other Preparations"	Web Console (when using the GUI) Management Server (when using the CLI)	All guests
