The diagram below shows the configuration for using the KVM Support Function.

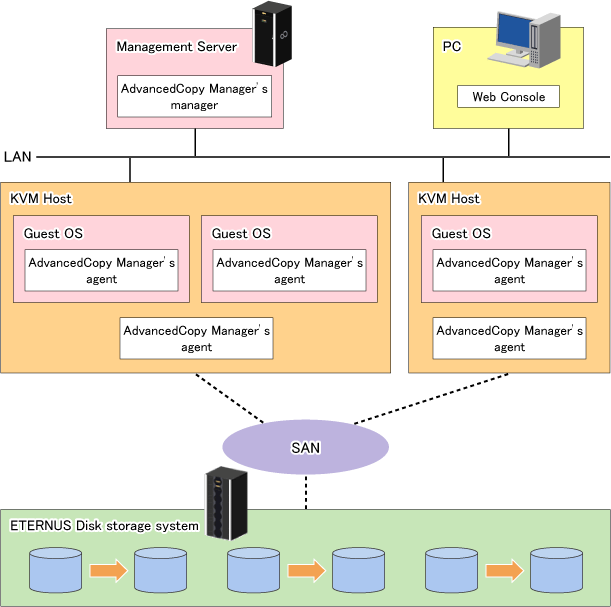

Figure F.2 Configuration for Using KVM Support Function
When creating a guest OS, specify the following according to the creation method.
Creating Method | Specification |
|---|---|
Command | Specify "PC" as the machine type. |
GUI | Specify "i440FX" as the chipset. |
After creating a guest OS, make sure the chipset is set to "i440FX" in GUI.
For details on how to create a guest OS, refer to the relevant Linux manual.
Install ETERNUS SF Manager or AdvancedCopy Manager's agents on both of the following servers:
KVM host server
Guest server that is used for backup or replication operations
Point
The version of ETERNUS SF Manager or AdvancedCopy Manger's agent to be installed in the KVM host must be equal to or later than that of the KVM guest.
