The method of performing backup operation or replication operation on the transaction volume in scalable operation is explained.

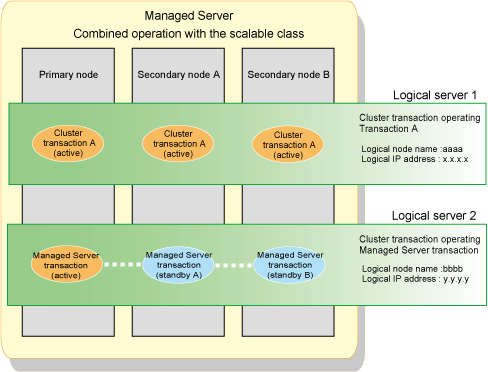

Figure 2.6 Combined Operation with Scalable Operation
AdvancedCopy Manager does not support the scalable operation. Therefore, the resource of AdvancedCopy Manager cannot be added to a scalable operation.
When performing backup operation and replication operation to the transaction volume in scalable operation, create the cluster service of new Managed Server transaction or Management Server transaction. When cluster service in a scalable operation consists of three or more nodes, create the Managed Server transaction in cascade topology. When cluster service in scalable operation consists of 2 nodes, create the Managed Server transaction in mutual standby.
The backup operation and replication operation are performed from the Managed Server transaction to the transaction volume in scalable operation.
The above figure shows combined operation of userApplication in scalable operation, and cluster service of Managed Server transaction. The backup operation for volume on transaction A is performed from the Managed Server transaction. The backup operation's information is managed in the Managed Server transaction.
Note
Refer to "Notes on Cluster Operation" in the AdvancedCopy Manager Operation Guide for notes on combined operation with transactions in scalable operation.
