2.4 Shortcut to Detail View

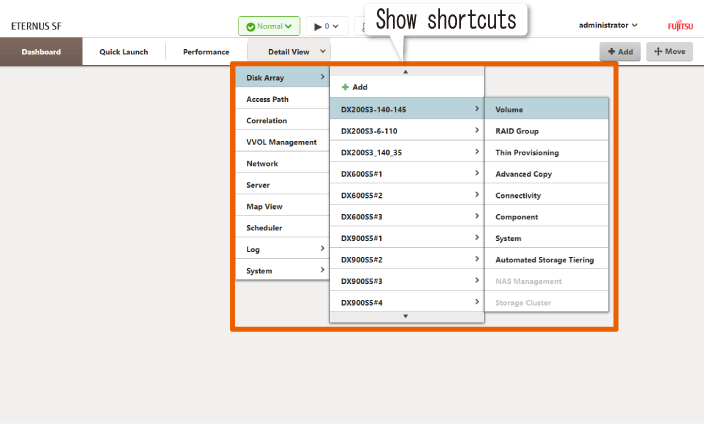

A shortcut menu to each screen of Detail View is available in the Dashboard tab as shown in the following screen. If a menu is selected from the drop-down list, the Detail View screen of the selected menu is displayed in a new browser tab.

Note

The number of Detail View screens that can be opened from the shortcut menu is only one.
If pop-ups are blocked by the browser, change the setting to allow pop-ups.
When changing where the new pop-up screen is displayed, make sure that there is no screen opened from the shortcut menu. If a screen opened from the shortcut menu remains, the changed setting may not be reflected correctly.
If Web Console is open in two browser tabs and you log out from one of the screens, performing an operation from the remaining screen may display a session timeout screen in English regardless of the set language.

Scrolling Up and Down the Drop-down List

If the number of devices registered in this product is 11 or more, the drop-down list displays buttons (up and down triangle buttons) for scrolling up and down the list. The list can be scrolled through just by hovering the mouse over those buttons.

List of Displayed Menus

The list of menus displayed in the drop-down list and the sections describing how to operate the displayed screens when a menu is clicked are as follows.

Menus Displayed in the Drop-down List			Section Describing How to Operate the Displayed Screen
First Level	Second Level	Third Level	Section Describing How to Operate the Displayed Screen
Disk Array	+ Add	-	9.1.1 Register ETERNUS Disk Storage System
	Disk Array Name	Volume	9.7 Operations for Volume
		RAID Group	9.8 Operations for RAID Group
		Thin Provisioning	9.9 Operations for Thin Provisioning
		Advanced Copy	9.10 Operations for Advanced Copy
		Connectivity	9.11 Operations for Storage Device Connectivity
		Component	9.12 Operations for Storage Device Component
		System	9.6 Operations for System Management
		Automated Storage Tiering	9.14 Operations for Automated Storage Tiering
		NAS Management	9.15 Operations for NAS Management
		Storage Cluster	9.18 Operations for Storage Cluster
Access Path	-	-	11.4 Operations for Access Path
Correlation	-	-	9.5 Operations for Correlation Management
VVOL Management	-	-	9.19 Operations for VMware vSphere Virtual Volumes Function
Network	-	-	Chapter 10 Operations Started From Network Tab
Server	-	-	11.1 Operations for Server
Map View	-	-	Chapter 12 Operations Started From Map View Tab
Scheduler	-	-	Chapter 13 Operations Started From Scheduler Tab
Log	Operation History	-	14.1 Display Operation History
	Events	-	14.3 Display Events
	Login/Logout History	-	14.5 Display Login/Logout History
	Threshold Monitoring Alarms	-	14.7 Display Threshold Monitoring Alarms
System	Preferences	-	15.2 Web Console Control Settings
	User Management	-	15.1 Operations for User Management
	Trouble Shootings	-	15.4 System Maintenance
	Patch Management	-	15.5 Patch Management
