If CF is already configured, right-click on a CF node name, and select [Stop CF] (see below).
Figure 4.17 Stop CF
A confirmation pop-up appears. Click <Yes> to continue.

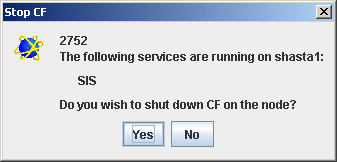

Figure 4.18 Stopping CF
Before stopping CF, all services that use CF on that node should first be shut down. When you invoke [Stop CF] in the GUI, the GUI checks which services are still running. A list of these services is displayed in the pop-up to ask if you wish to continue the operation.
If you wish to continue the operation, shut down these services.
If the operation is canceled, the shutdown processing of a CF service that was not shut down will be canceled.
The already shut down CF service will remain shut down.
Note
Only PRIMECLUSTER related services can be checked in the GUI as to which services are running. If a third-party product, for example Oracle RAC, is using a CF service, the product is not detected. In such cases, the third-party product should be shut down before you attempt to stop CF.
To stop CF on a node, the CF state must be UP, COMINGUP, or INVALID.
If CF is not configured, Cluster Admin displays the following screen.
Select [Unload driver].

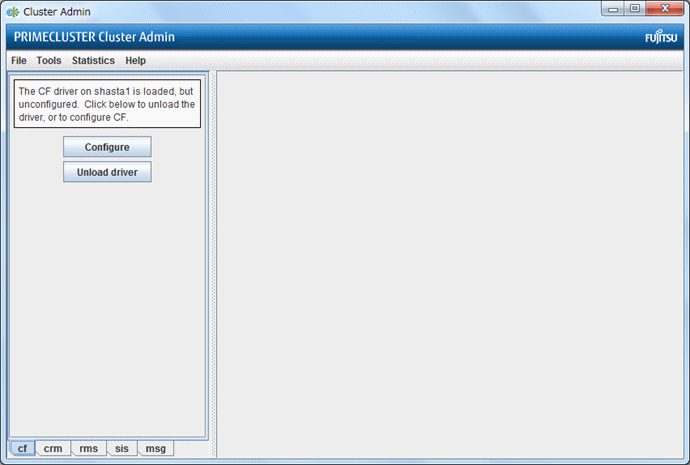

Figure 4.19 CF loaded but not configured
