ServerView Resource Orchestrator Cloud Edition V3.4.0 User's Guide for Tenant Users

5.3.4 Manage Patch Information

Patch information can be managed after it is applied to or deleted from a server that has been deployed.

Register Patch Information

Follow the steps below to register patch information:

1. Display the [L-Platform Details] window.
   Refer to "5.3.2 L-Platform Detailed Information Display" for information on how to display the window.

2. Selecting a target server displays the status of its software.

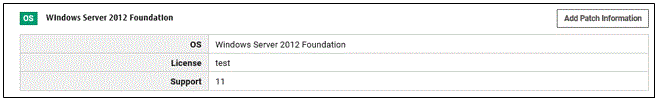

   The following window will be displayed if the patch information has not been registered.



3. Click the [Add Patch Information] button.

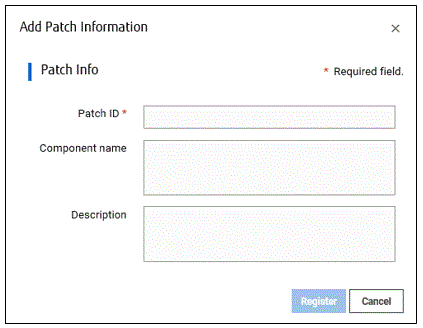

   The [Add Patch Information] window will be displayed.



   Item name	Description
   Patch ID	Specify the patch ID that has been applied. The patch ID must be no more than 32 bytes of alpha-numeric one-byte characters.
   Component name	Specify the name of the component where the patch is to be applied. The name must be no more than 85 characters long and not include the following characters: <, >, &, ', " and control characters
   Description	Specify the description related to the patch information that has been applied. The description must be no more than 85 characters long and not include the following characters: <, >, &, ', " and control characters

4. Enter the required fields and click the [Register] button.

Delete Patch Information

Follow the steps below to delete patch information that has been registered:

1. Check the target software of the target server on the [L-Platform Details] window.

2. Click the [] button of the patch information to be deleted.
   A message confirming the deletion will be displayed. Click the [OK] button.
