1.2.3 [Citrix Xen] Example Configuration of an Environment in which the Automatic Quarantining Function Is Implemented

An example configuration is shown below.

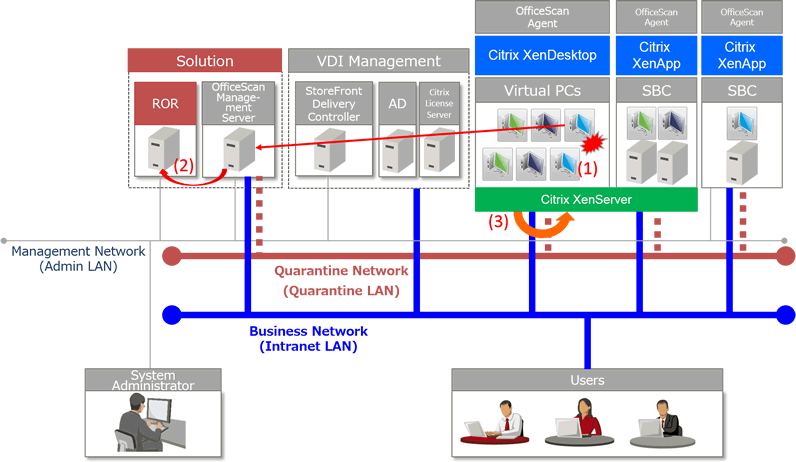

Figure 1.8 [Citrix Xen] [Trend Micro OfficeScan] Example Configuration of an Environment in which the Automatic Quarantining Function Is Implemented

(1) Notification of virus detection

(2) When a virus is detected, Resource Orchestrator is notified using an SNMP trap

(3) When a virus is detected, the relevant virtual PC or SBC server is automatically quarantined by Resource Orchestrator

Figure 1.9 [Citrix Xen] [Symantec] Example Configuration of an Environment in which the Automatic Quarantining Function Is Implemented

SEP: Symantec Endpoint Protection Manager

(1) Notification of virus detection

(2-1) When a virus is detected, the Symantec coordination batch file provided by Resource Orchestrator is executed by Symantec Endpoint Protection Manager

(2-2) After being executed, the Symantec coordination batch file uses a REST-API to notify Resource Orchestrator

(3) When a virus is detected, the relevant virtual PC or SBC server is automatically quarantined by Resource Orchestrator

Figure 1.10 [Citrix Xen] [McAfee] Example Configuration of an Environment in which the Automatic Quarantining Function Is Implemented

(1) Notification of virus detection

(2) When a virus is detected, Resource Orchestrator is notified using an SNMP trap

(3) When a virus is detected, the relevant virtual PC or SBC server is automatically quarantined by Resource Orchestrator
