The firewall ruleset parameter values can be changed in the firewall settings.
Perform the following steps to change the firewall settings:
Display the [L-Platform Details] page
Refer to "5.3.2 L-Platform Detailed Information Display" for information on the display method.
Select the firewall, and then click the [Setting] button.

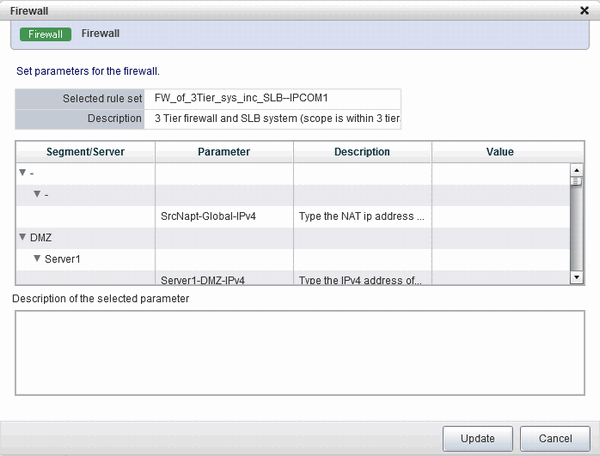

[Firewall] page is displayed.
Selected ruleset: Displays the ruleset names.
Description: Displays the ruleset descriptions.
Segment/Server: The names of the segments or servers where the parameters are enabled are displayed. "-" is displayed for parameters are unrelated to the segment or server.
Parameter: Displays the parameter names.
Description: Displays an explanation of the parameter
Value: Enter the value to be set for the parameter
Description of the selected parameter: The description of the parameter in the row being pointed at is displayed.
When the [Update] button is clicked, a confirmation message is displayed.
Click the [OK] button to save and apply the firewall settings.
Point
Firewall settings cannot be set by L-Platform subscription or L-Platform reconfiguration.
After an L-Platform is deployed, check the IP addresses of the servers included in the L-Platform and the port numbers used by the installed middleware. Then, set the allowed IP addresses and port numbers in the relevant ruleset parameters in the firewall settings.
