Resource Orchestrator and ServerView Deployment Manager can be installed either on the same server or on two different servers. In both cases, they can share the same subnet (admin LAN) to control managed servers. In a shared subnet configuration, ServerView Deployment Manager should be used instead of Resource Orchestrator for all image operations such as server cloning, backup and restore.
Resource Orchestrator and ServerView Deployment Manager use PXE boot via the network.
Therefore, if Resource Orchestrator and ServerView Deployment Manager both exist in the same network, problems resulting from conflict may occur.
Execute the deployment_service_uninstall command and uninstall services related to Resource Orchestrator (TFTP Service, PXE Services, and DHCP Server).
For details on the command, refer to "5.1 deployment_service_uninstall" in the "Reference Guide (Command/XML) CE".

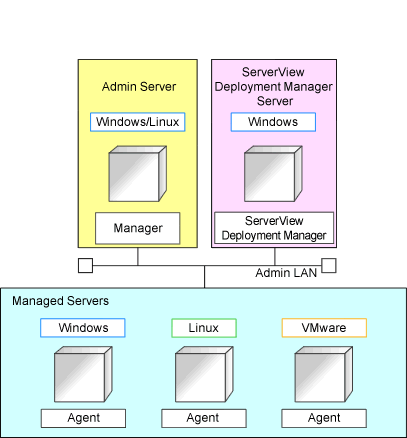

Figure I.1 System Configuration Example (Separate Server Installation)

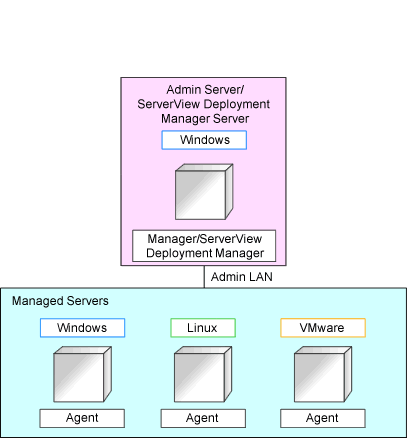

Figure I.2 System Configuration Example (Single Server Installation)
