This chapter explains the overall flow of setup when using Resource Orchestrator.
An overview of setup operations when using Resource Orchestrator is given below.
Flow of Setup Operations for Special Administrators
The flow of setup operations for special administrators is indicated below.

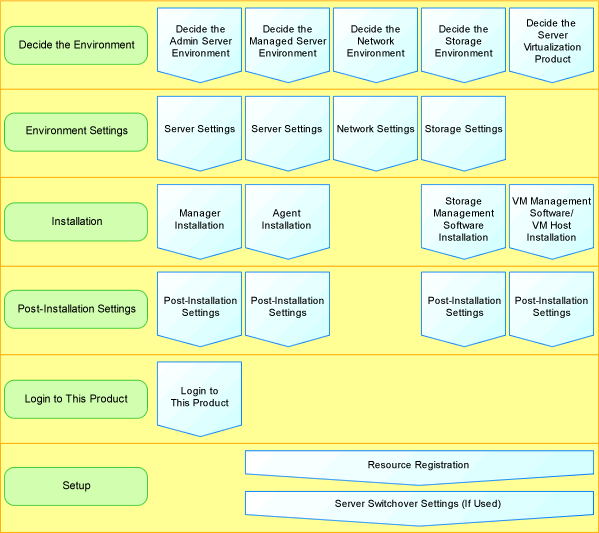

Figure 1.1 Flow of Setup Operations for Special Administrators
Definition for Resource Orchestrator Setup
Define the following settings:
For details, refer to the "Design Guide VE".
Defining Servers, Storage, and Networks
Deciding Server Virtualization Software
Configuring Resource Orchestrator Setup Settings
Define the following settings:
For details, refer to the "Design Guide VE".
Server, Storage, and Network Settings
Settings for Server Virtualization Software
Install Software on Admin Servers
Install an OS
Install required software
Install the manager
Install the Resource Orchestrator Manager and Perform Configuration
For details, refer to "2.1 Manager Installation" and "Chapter 6 Configuration after Manager Installation".
Create a Windows PE
It is necessary to create a Windows PE after installing the manager of Resource Orchestrator.
For details, refer to the "Windows PE Creation Script Guide".
Log in to Resource Orchestrator
Log in to Resource Orchestrator.
For details, refer to "Chapter 1 Login and Logout" in the "User's Guide VE".
License Setup
Set up licenses after logging in to Resource Orchestrator.
For details, refer to "Chapter 4 License Setup and Confirmation".
Resource Registration
Register the required resources in Resource Orchestrator.
When Using Blade Servers
Register VIOM (when using rack mount servers supported by VIOM)
Register VM management software (when using VM management software)
Register chassis
Register admin LAN subnets (when there are multiple admin LAN subnets)
Refer to "7.9 Registering Admin LAN Subnets" in the "User's Guide VE".
Register managed servers (within chassis)
Register LAN switch blades
Configure VLANs for LAN switch blades manually
Register LAN switches (when monitoring with the NetworkViewer)
Manually configure VLANs for LAN switches
Configure power monitoring devices (when using devices)
Configure HBA address rename (when using HBA address rename)
Configure the HBA address rename setup service (when using the HBA address rename setup service)
Install software and register agents on managed servers
Install software on managed servers (physical servers, VM hosts) and then register agents in Resource Orchestrator.
- Install an OS
- Install required software
- Install the agent
- Register the agent
When Using Rack Mount or Tower Servers
Register VIOM or ISM (when using rack mount servers supported by VIOM or ISM)
Register VM management software (when using VM management software)
Register admin LAN subnets (when there are multiple admin LAN subnets)
Refer to "7.9 Registering Admin LAN Subnets" in the "User's Guide VE".
Register Managed Servers
Register LAN Switches
Manually configure VLANs for LAN switches
Configure power monitoring devices (when using devices)
Configure HBA address rename (when using HBA address rename)
Configure the HBA address rename setup service (when using the HBA address rename setup service)
Install software and register agents on managed servers
Install software on managed servers (physical servers, VM hosts) and then register agents in Resource Orchestrator.
- Install an OS
- Install required software
- Install the agent
- Register the agent
When using PRIMEQUEST
Register VM management software (when using VM management software)
Register chassis
Register admin LAN subnets (when there are multiple admin LAN subnets)
Refer to "7.9 Registering Admin LAN Subnets" in the "User's Guide VE".
Register managed servers (within chassis)
Install software and register agents on managed servers
Install software on managed servers (physical servers, VM hosts) and then register agents in Resource Orchestrator.
- Install an OS
- Install required software
- Install the agent
- Register the agent
When Using SPARC Enterprise M3000/T series or SPARC M10-1/M10-4/M12-1/M12-2
Register admin LAN subnets (when there are multiple admin LAN subnets)
Refer to "7.9 Registering Admin LAN Subnets" in the "User's Guide VE".
Register Managed Servers
Configure power monitoring devices (when using devices)
Install software and register agents on managed servers
Install software and register agents on managed servers (physical servers, VM hosts).
- Install an OS
- Install required software
- Install the agent
- Register the agent
When Using SPARC Enterprise M4000/M5000/M8000/M9000 or SPARC M10-4S/M12-2S
Register chassis
Register admin LAN subnets (when there are multiple admin LAN subnets)
Refer to "7.9 Registering Admin LAN Subnets" in the "User's Guide VE".
Register managed servers (within chassis)
Configure power monitoring devices (when using devices)
Install software and register agents on managed servers
Install software and register agents on managed servers (physical servers, VM hosts).
- Install an OS
- Install required software
- Install the agent
- Register the agent
Settings for Server Switchover
To use server switchover, specify the server switchover settings.
For details, refer to "Chapter 4 Server Switchover" in the "Operation Guide VE".
