You need to set up Web-Based Admin View, as described below, after setting up Fast switching mode on GLS (Redundant Line Control Function):
Note
You need the following configurations on the management servers and monitored nodes that support GLS Fast switching mode.
Setup of Client (Setup of IP route table)
Using the MS-DOS command prompt, define the following for each client:
For IPv4
C:\Windows>route add <virtual IP address A> MASK <subnet mask> <IP address A>
C:\Windows>route add <virtual IP address B> MASK <subnet mask> <IP address B>
Should be connected to the same network as the client out of the virtual IP addresses defined by GLS on a primary management server, and of the IP addresses corresponded to the physical interface names composed by those virtual IP addresses.
Should be connected to the same network as the client out of the virtual IP addresses defined by GLS on a secondary management server, and of the IP addresses corresponded to the physical interface names composed by those virtual IP addresses.
Subnet mask
255.255.255.255 is set up.
For IPv6
C:\Windows>route add <virtual IP address A>/<prefix length> <IP address A>
C:\Windows>route add <virtual IP address B>/<prefix length> <IP address B>
Should be connected to the same network as the client out of the virtual IP addresses defined by GLS on a primary management server, and of the IP addresses corresponded to the physical interface names composed by those virtual IP addresses.
Should be connected to the same network as the client out of the virtual IP addresses defined by GLS on a secondary management server, and of the IP addresses corresponded to the physical interface names composed by those virtual IP addresses.
128 is set up.
Note
Since information set up by the route command is deleted if the client is re-IPL, you need to register it in a batch file or log procedure in the startup folder.

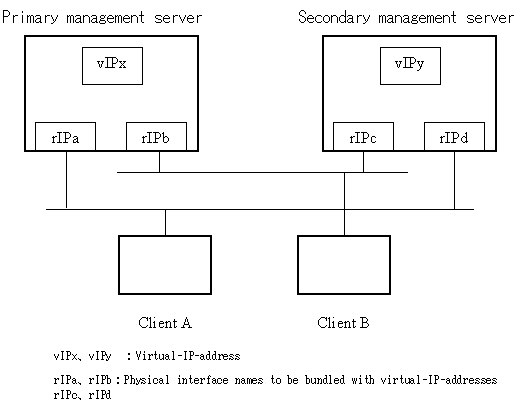

These are the setup examples by wvSetparam command in the following environment.
For IPv4
Setup for client A
C:\Windows>route add <vIPx> 255.255.255.255 <rIPa>
C:\Windows>route add <vIPy> 255.255.255.255 <rIPd>
Setup for client B
C:\Windows>route add <vIPx> 255.255.255.255 <rIPb>
C:\Windows>route add <vIPy> 255.255.255.255 <rIPc>
For IPv6
Setup for client A
C:\Windows>route add <vIPx>/128 <rIPa>
C:\Windows>route add <vIPy>/128 <rIPd>
Setup for client B
C:\Windows>route add <vIPx>/128 <rIPb>
C:\Windows>route add <vIPy>/128 <rIPc>
Make an IP address redundant using the following steps:
Stop Web-Based Admin View on all the management servers and monitored nodes.
Refer to "6.1 Stop".
Set up the IP address.
Execute the following commands on the management servers and monitored nodes where GLS virtual IP address needs to be set.
# /etc/opt/FJSVwvbs/etc/bin/wvSetparam mip <mip>
# /etc/opt/FJSVwvbs/etc/bin/wvSetparam httpip <httpip>
<mip> indicates mip. Set up the virtual IP address.
<httpip> indicates httpip. Set up the virtual IP address.
Change the management server settings.
Change the management server settings on all the management servers and monitored nodes if the changed monitored node is the cluster management server.
# /etc/opt/FJSVwvbs/etc/bin/wvSetparam primary-server <primary management server IP address>
# /etc/opt/FJSVwvbs/etc/bin/wvSetparam secondary-server <secondary management server IP address>
For the IP address indicated as <IP address of primary management server> and <IP address of secondary management server> in the reference, set up mip for each management server.
Restart Web-Based Admin View on all the management servers and monitored nodes.
Refer to "6.2 Restart".
Note
Only IP (IPv4 or IPv6) addresses can be set to the primary management server, the secondary management server, and httpip. Note that IPv6 link local addresses cannot be set to these servers.
