H.7.2 Configuring a Cluster System Between Guest OSes on One ESXi Host

Figure H.3 Sample configuration of a cluster between guest OSes on one ESXi host

Note

• Perform time synchronization with the guest OS set as an NTP client.

• Create at least two network systems for the cluster interconnect.

Used hardware

• RX300 S6 x 1

• FC-Switch x 2

• LAN card x 2

• Fibre channel card x 2

• Disk array unit x 1

Used software

• Red Hat Enterprise Linux

• PRIMECLUSTER 4.3

• VMware vSphere

• Microsoft Internet Explorer (installed on the operation management personal computer)

• Java SE Runtime Environment latest version (installed on the operation management personal computer)

H.7.2.1 Cluster Configuration Worksheet

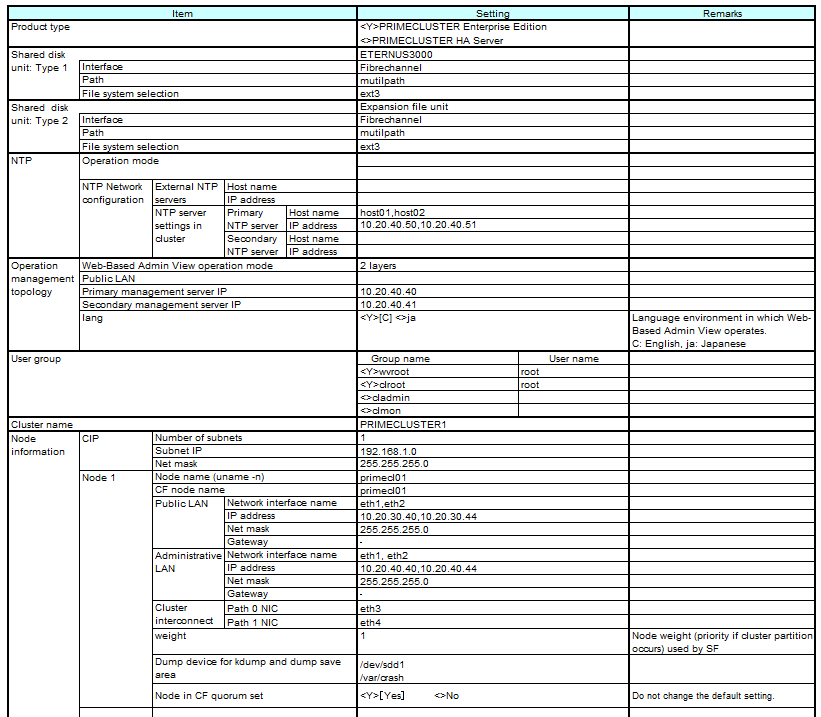

Shown below is an example of the Cluster Configuration Worksheet.

GFS: Global File Services
GDS: Global Disk Services

H.7.2.2 GLS Setup Worksheet

Shown below is an example of the GLS Setup Worksheet.

Worksheet for NIC switching mode (virtual IP takeover)

GLS: Global Link Services

H.7.2.3 GDS Configuration Worksheet

Shown below is an example of the GDS Configuration Worksheet.
