PRIMECLUSTER Installation and Administration Guide4.5

Chapter 4 Preparation Prior to Building a Cluster

This chapter explains the preparation work that is required prior to building a cluster, such as starting up the Web-Based Admin View screen.

See

As preparation for building the cluster, check the operation environment. See "2 Operating environment" in the "PRIMECLUSTER Installation Guide."

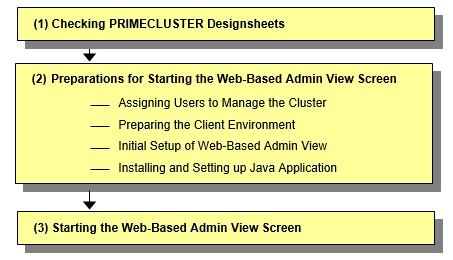

Table 4.1 Operation procedure and manual reference location for starting the Web-Based Admin View screen

	Work item	Execution Node	Required/Optional	Manual reference location*
(1)	4.1 Checking PRIMECLUSTER Designsheets	-	Required
(2)	4.2 Preparations for Starting the Web-Based Admin View Screen
	4.2.1 Assigning Users to Manage the Cluster	Cluster node	Required
	4.2.2 Preparing the Client Environment	Client	Required	WEB "3.1.2 Prerequisite client environment"
	4.2.3 Initial Setup of Web-Based Admin View	Cluster node	Required
	4.2.4 Installing and Setting up Java Application	Client	Required	WEB " "3.1.3.1 Installing Java application" "3.1.3.2 Setting up Java application"
(3)	4.3 Starting the Web-Based Admin View Screen	Client	Required	WEB "3.2 Screen startup"

* The PRIMECLUSTER manual name is abbreviated as follows:

• WEB: PRIMECLUSTER Web-Based Admin View Operation Guide
