1.3.1 Operation Management Interface

By registering a disk unit with GDS, system administrators will be able to centrally manage all operation on the disk (configuration setting, configuration management, operation monitoring, backup, data migration, configuration change, maintenance) via GDS operation management interface.

Operation management interface provides the GUI (Graphical User Interface), automatic processing, operation log, and CLI (Command Line Interface) useful for liaising with other applications, allowing easy and intuitive operation even for inexperienced Linux system users.

Since the GUI is Web browser-based, system administrator will be able to centrally monitor and operate from any remote location.

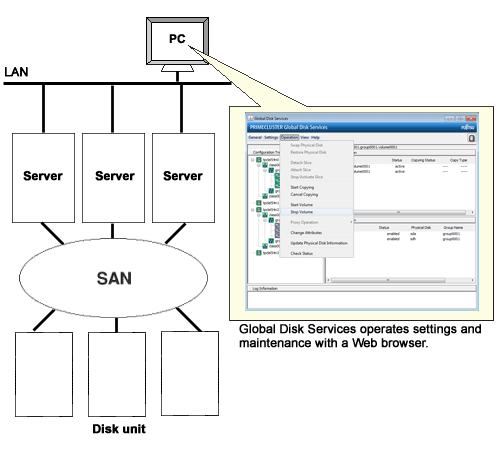

Figure 1.12 Operation Management Interface

See

For the operation methods of the GUI, see "Chapter 5 GDS Management View."
For the usage methods of CLI, see "Appendix B Command Reference."
For the operations available on GUI and on CLI, see "5.6 Operation."
